Products

  • DL1108 & DL1109

    Quick View
    ×
    DL1108 & DL1109- 11W & 13W Dimmable LED Downlight

    Specification :

    Input Voltage: 200-240V 50/60Hz

    Housing Color: White

    Power: 11W  & 13W

    Total rating power (Inc. Driver): 13W &15W

    Beam angle: 40 degree

    Dimmable: YES

    PF: 0.90

    Efficacy: 80LM/W

    LED: COB LED

    CRI : 82

    Material : Aluminium body + PMMA Lens

    Warranty : 3 Years

  • DL1107

    Quick View
    ×
    DL1107- 8W Dimmable LED Downlight

    Specification :

    Input Voltage: 200-240V  50/60Hz

    Shape Color: White

    Product size : Dia. 100* H57mm

    Cut out size:  70-93mm

    Rate Power8W

    Total power (incl.driver): 9.5W

    Beam angle:  40 degree

    DimmableYES

    PF0.95

    Efficacy : 80LM/W

    Lumens : WW 750lm    CW 800lm

    LEDHigh lumen COB LED

    CCT3000K / 4000K / 5000K / 6500K

    CRI : 80

    Heat sink MaterialAluminium

    IP Rating :IP20



  • DL1105 & DL1106

    Quick View
    ×
    DL1105 & DL1106- 11W & 13W Dimmable LED Downlight

    Specification :

    Input Voltage: 200-240V 50/60Hz

    Housing Color: White

    Power: 11W  & 13W

    Total rating power (Inc. Driver): 13W &15W

    Beam angle: 90 degree

    Dimmable: YES

    PF: 0.90

    Efficacy: 80LM/W

    LED: COB LED

    CRI : 82

    Material : Aluminium body + PMMA Diffuser

    Warranty : 3 Years


  • DL1116 & DL1148

    Quick View
    ×

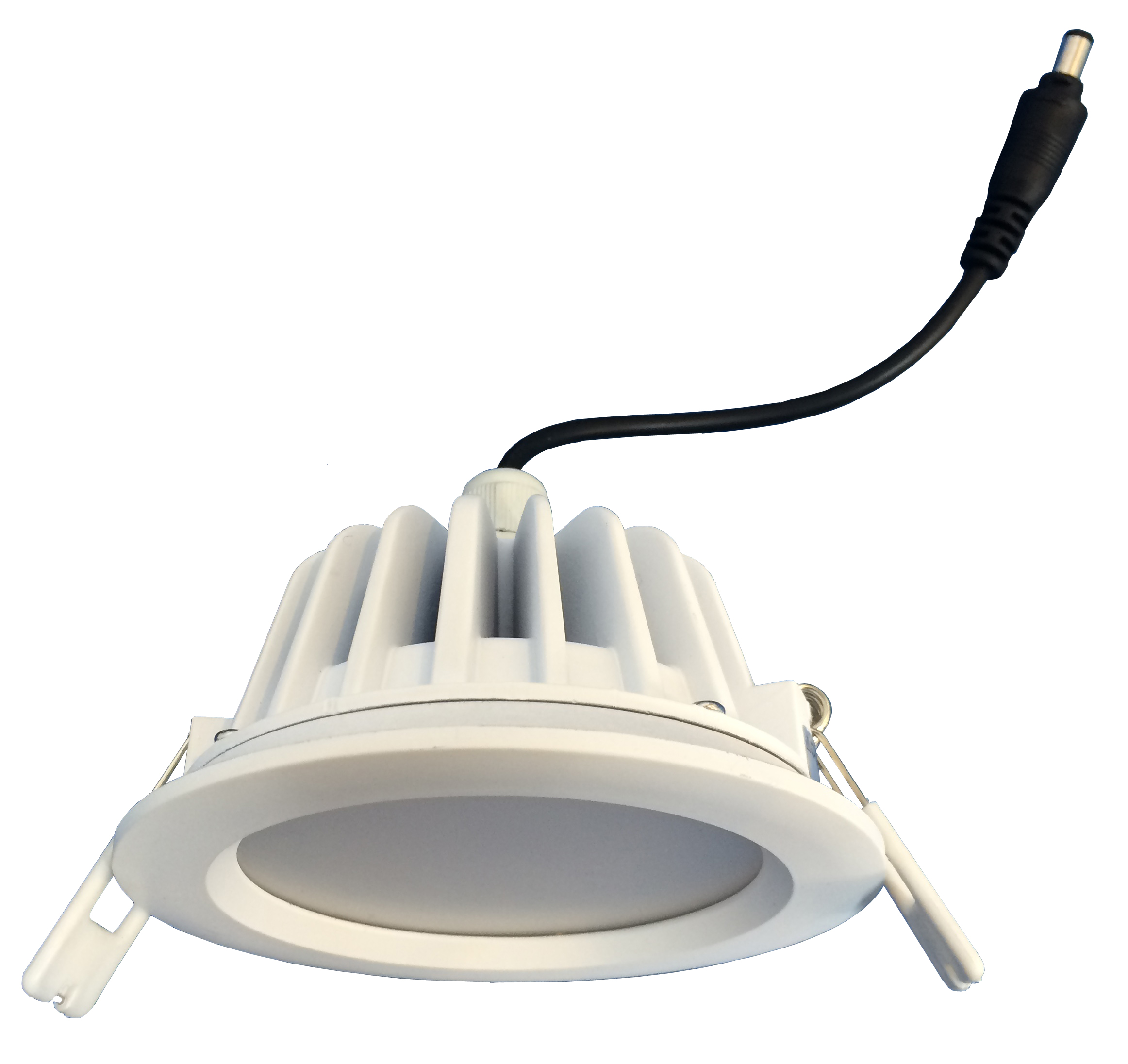

    DL1116 & DL1148- 11W Dimmable IP65 Waterproof LED Downlight

    Specification:

    Input Voltage: 200-240V 50/60Hz

    Housing Color: Round- White

    Power: 11W

    Total rating power (Inc. Driver): 13W

    Beam angle: 100 degree

    Dimmable: YES

    PF: 0.90

    Efficacy: 80LM/W

    LED: SMD LED

    CRI : 85

    Material : Aluminium body + PMMA Diffuser

    Warranty : 3 Years


  • DL1129

    Quick View
    ×

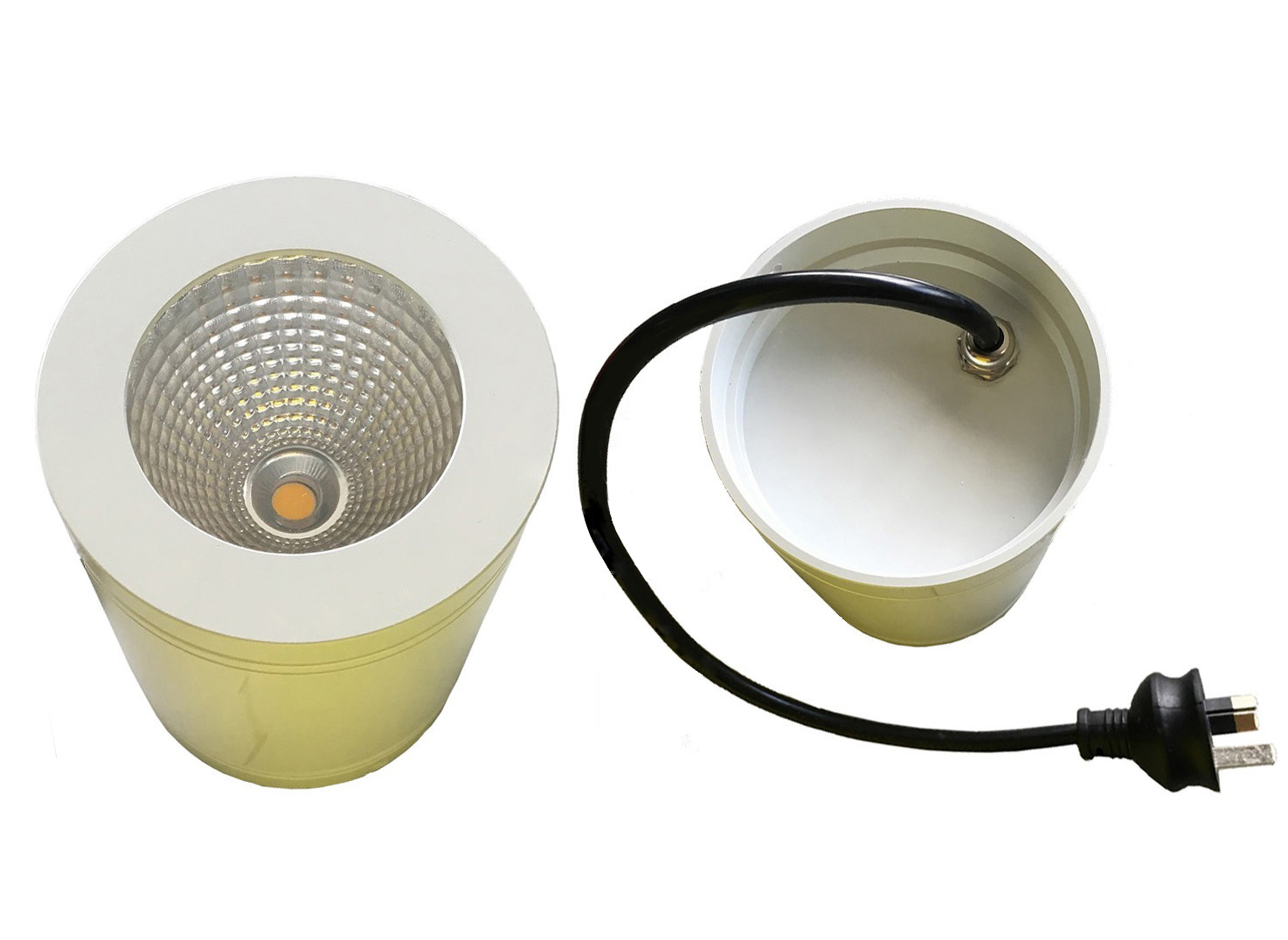

    DL1129 IP65 Surface Mounted 12W Dimmable LED Downlight,

    Specification :

    Input Voltage: 200-240V  50/60Hz

    Shape Color: White or Black

    Product size : Dia.105mm * H146mm

    Rate Power:  12W

    Beam angle:  100° (Opaque Diffuser)

                          40 ° (Clare Diffuser)

    Dimmable YES

    PF 0.95

    Efficacy : 85LM/W

    Lumens : WW 850LM  CW 900LM

    LED High lumen COB LED

    CCT: 3000K / 4000K / 5000K / 6500K

    CRI : 82

    Material Aluminium Heat sink + PMMA Diffuser

    IP Rating : IP65
    Installation ways : Surface mounted

    Warranty : 3 Years

  • DL1121

    Quick View
    ×
    DL1121 Dimmable LED Downlight with 4 Interchangeable Trims

    Specification :

    Input Voltage: 200-240V  50/60Hz

    Shape Color:  Black Heatsink & White trim

    Product size : Dia 105*93mm

    Cutout size: 90mm – 95mm

    Rate Power:  8W

    Total rating power (Inc. Driver): 10W

    Beam angle: Mini Trim: 38 degrees
      Flat Trim: 32 degrees

    Dimmable YES

    PF 0.95

    Efficacy : 90LM/W

    Lumens : Mini Trim: 800lm   Flat Trim: 600lm

    LED High lumen COB LED

    CCT: 3000K / 4000K / 5000K / 6500K

    CRI : 82

    Material Diecast aluminium heatsink

    IP Rating : IP20 indoor only

  • DL1113

    Quick View
    ×

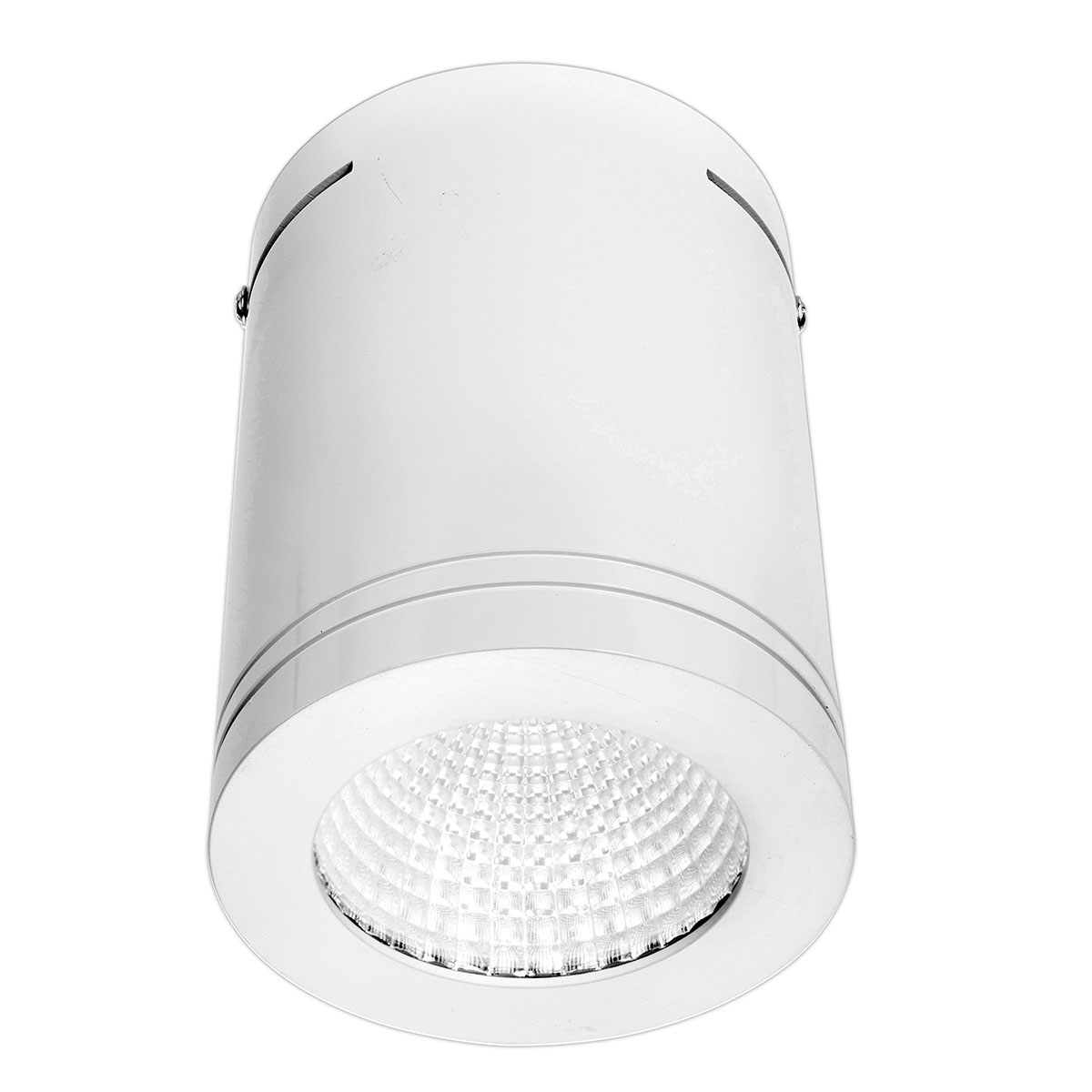

    DL1113 Surface mounted Dimmable LED Downlight

    Specification

    Input Voltage: 200-240V  50/60Hz

    Shape Color: White or Black

    Product size : Dia. 105mm * H140mm

    Rate Power:  12W

    Beam angle:  100° (Opaque Diffuser)

                          40 ° (Clare Diffuser)

    Dimmable : YES

    PF : 0.95

    Efficacy : 85LM/W

    Lumens : WW 850LM  CW 900LM

    LED : High lumen COB LED

    CCT: 3000K / 4000K / 5000K / 6500K

    CRI : 82

    Material : Aluminium Heat sink + PMMA Diffuser

    IP Rating IP20

    Installation ways : Surface mounted

    Warranty : 3 Years


  • DL1101 & DL1102 & DL1103

    Quick View
    ×
    DL1101 & DL1102 & DL1103- 12W Dimmable LED Downlight

    Specification :

    Input Voltage: AC200-240V  50/60Hz

    Shape Color: White / Brushed Nickel /Silver/Black

    Product Size: Dia100* H75mm

    Cutout Size: 70-92mm

    Rate Power:  12W

    Total power (incl.driver): 13W

    Beam angle: 50°

    Dimmable : YES

    PF : 0.95

    Efficacy : 95LM/W

    Lumens : WW 850lm     CW  900lm

    LED : High lumen COB LED

    CCT: 3000K / 4200K / 5000K/ 6500K

    CRI : 82

    Material : Aluminium Heatsink +PMMA LENS

    IP Rating : IP20 (Gimbal)   IP44 (Fixed)
