  • PL1451

    Quick View
    ×
    PL1451-LED CLASSROOM LIGHT-45W LED护眼黑板灯

    Product Features:

    Input voltage 输入电压: 220V AC

    频率 / Frequency 50/60Hz

    Wattage 功率: 45W

    Size 尺寸:1580*150*85mm

    Power factor 功率因素: > 0.95

    Lumen 亮度:3350lm

    LUX 照度:600LUX

    CCT 色温 : 4700K-5200K

    CRI 显色指数:>90(R9>50)

    Fluctuation Depth/频闪波动深度 : <1%

    Certificate 认证: CCC

    Driver : External 电源采用外置方式,便于升级维护


  • PL1450

    Quick View
    ×
    PL1450-LED CLASSROOM LIGHT-36W LED护眼教室灯

    Product Features:

    Input voltage 输入电压: 220V AC

    频率 / Frequency 50/60Hz

    Wattage 功率: 36W

    Size 尺寸:1232*308*108mm

    Power factor 功率因素: > 0.95

    Lumen 亮度:2600lm

    LUX 照度:350LUX

    CCT 色温 : 4700-5200K

    CRI 显色指数:>90(R9>50)

    Fluctuation Depth/频闪波动深度 : <1%

    Certificate 认证: CCC

    Driver : External 电源采用外置方式,便于升级维护

    可以实现套接式教学音箱



  • PL1404

    Quick View
    ×
    PL1404-LED PANEL LIGHT-600*600mm 40W

    Product Features:

    Input voltage: 200~240V AC 50/60Hz

    Material: aluminium body + PC diffuser

    High grade aluminium, with white powder coated finish.

    Wattage: 40W

    Power factor: 0.95

    Efficacy (lm/W):80LM/W

    Lumens:WW: 3200lm,  CW: 3300lm

    Lamp: SMD 2835 LED

    CCT(K):3000K / 4200K / 5000K / 6500K

    CRI:>83

    Beam angle:120 degree

    Dimmable:No

    Life time: 35,000hrs

    SAA approved LED driver and flex & plug. (L: 1200mm)

    External driver with female joiner

    Ambient temp: -20 to +40°C

    MAX. Ta (Safety):50 degrees Celsius

    Installation:Surface Mounted

    IP Rating:IP20 indoor only


  • PL1405

    Quick View
    ×
    PL1405 -Surface Mounted LED PANEL LIGHT-600*600mm 40W

    Product Features:

    Input voltage: 200~240V AC 50/60Hz

    Material: aluminium body + PC diffuser

    High grade aluminium, with white powder coated finish.

    Wattage: 40W

    Power factor: 0.95

    Efficacy (lm/W):80LM/W

    Lumens:WW: 3100lm,  CW: 3200lm

    Lamp: SMD 2835 LED

    CCT(K):3000K / 4200K / 5000K / 6500K

    CRI:>83

    Beam angle:120 degree

    Dimmable:No

    Life time: 35,000hrs

    SAA approved LED driver and flex & plug. (L: 1200mm)

    External driver with female joiner

    Ambient temp: -20 to +40°C

    MAX. Ta (Safety):50 degrees Celsius

    Installation:Surface Mounted

    IP Rating:IP20 indoor only

  • PL1423 & PL1424 & PL1425

    Quick View
    ×
    PL1423 & PL1424 & PL1425-36W & 60W LED Multi / Tri Colour Panel Lights

    Product Features:

    Input voltage: 200~240V AC 50/60Hz

    Material: aluminium, PMMA & PS

    High grade aluminium, with white powder coated finish.

    Wattage: 36W & 60W

    Power factor: 0.95

    Epistar SMD2835 LED chips

    Life time: 35,000hrs

    CCT changeable: 3000K – 4000K – 6500K

    SAA approved LED driver and flex & plug. (L: 1200mm)

    External driver with female joiner

    Ambient temp: -20 to +40°C

    Not suitable for dimming

    Installation: Built-in(Standard) Surface Mount / Suspension Kits / Recessed (Optional)

    Suitable for 2-way switching

    Suitable for use with PIR & microwave sensors

    Designed to fit standard T-Bar ceilings.

    IP20 rated for indoor use only

    Warranty: 3 Years


  • PL1402

    Quick View
    ×

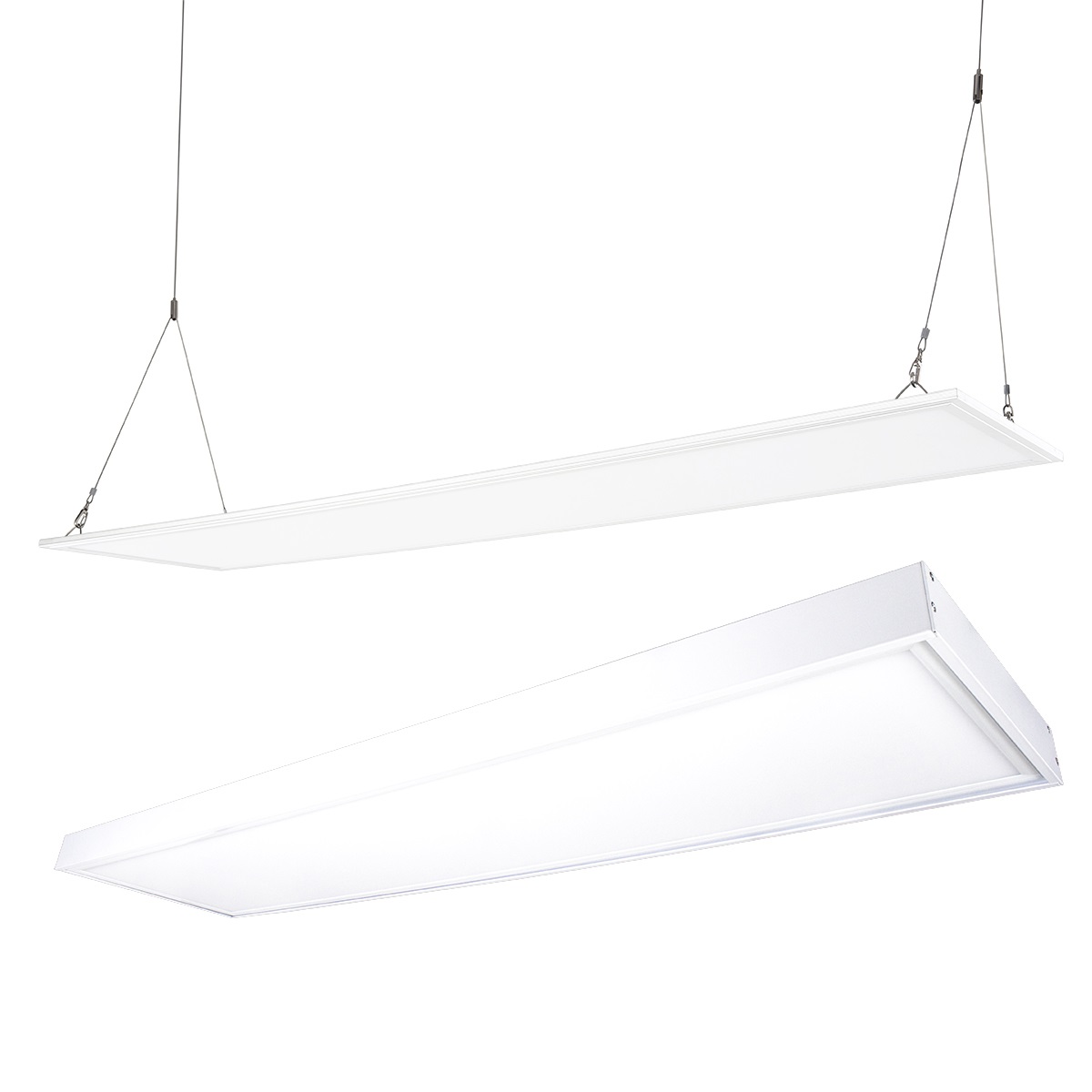

    PL1402-Surface mounted LED PANEL LIGHT-300*1200mm 40W

    Product Features:

    Input voltage: 200~240V AC 50/60Hz

    Material: aluminium body + PC diffuser

    High grade aluminium, with white powder coated finish.

    Wattage: 40W

    Power factor: 0.95

    Efficacy (lm/W):80LM/W

    Lumens:WW: 3100lm,  CW: 3200lm

    Lamp: SMD 2835 LED

    CCT(K):3000K / 4200K / 5000K / 6500K

    CRI:>83

    Beam angle:120 degree

    Dimmable:No

    Life time: 35,000hrs

    SAA approved LED driver and flex & plug. (L: 1200mm)

    External driver with female joiner

    Ambient temp: -20 to +40°C

    MAX. Ta (Safety):50 degrees Celsius

    Installation:Surface Mounted

    IP Rating:IP20 indoor only


  • PL1401

    Quick View
    ×

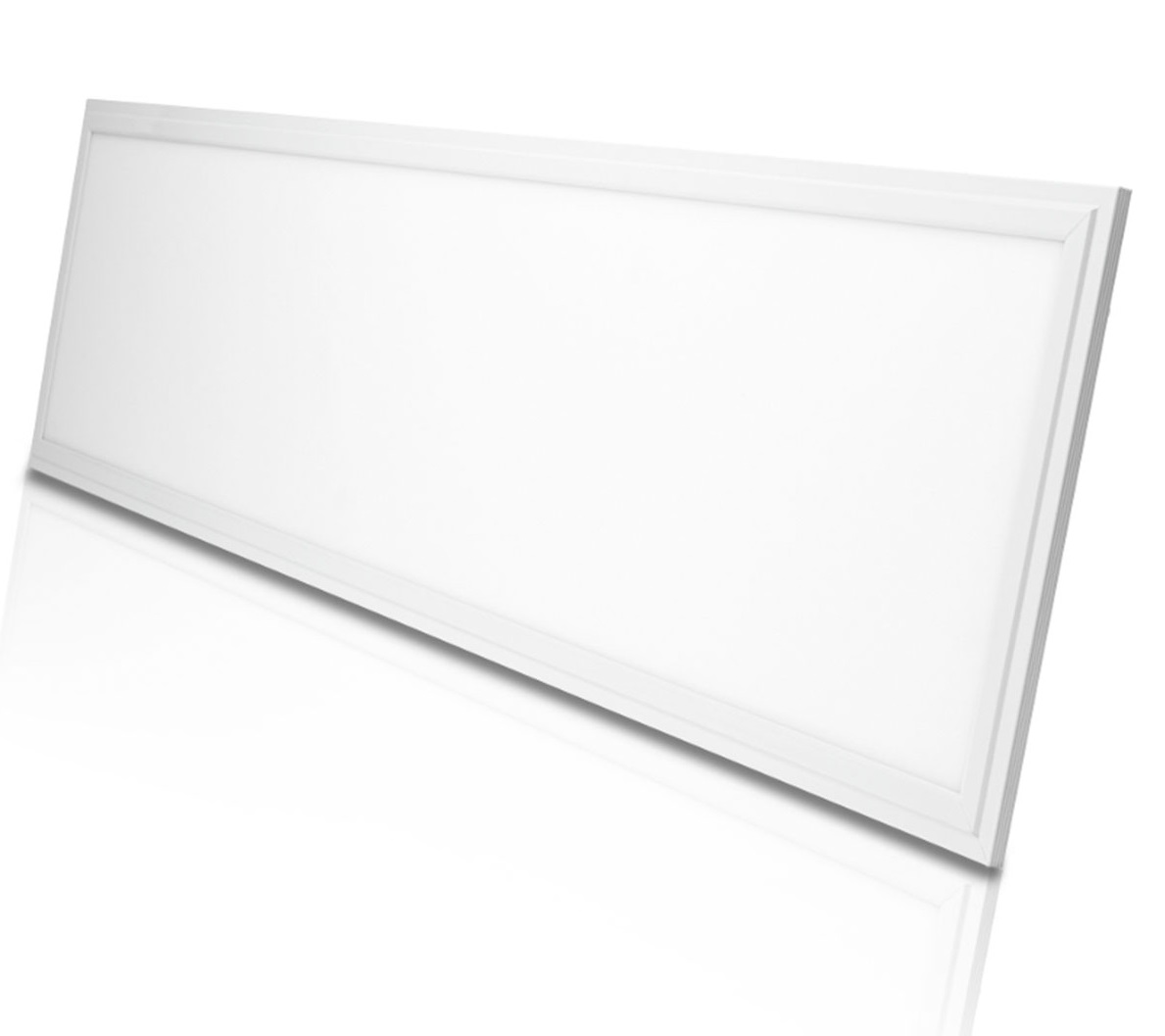

    PL1401-LED PANEL LIGHT-300*1200mm 40W

    Product Features:

    Input voltage: 200~240V AC 50/60Hz

    Material: aluminium body + PC diffuser

    High grade aluminium, with white powder coated finish.

    Wattage: 40W

    Power factor: 0.95

    Efficacy (lm/W):80LM/W

    Lumens:WW: 3100lm,  CW: 3200lm

    Lamp:SMD 2835 LED

    CCT(K):3000K / 4200K / 5000K / 6500K

    CRI:>83

    Beam angle:120 degree

    Dimmable:No

    Life time: 35,000hrs

    SAA approved LED driver and flex & plug. (L: 1200mm)

    External driver with female joiner

    Ambient temp: -20 to +40°C

    MAX. Ta (Safety):50 degrees Celsius

    Installation:Built-in(Standard)

    Surface Mount/Suspension Kits/Recessed (Optional)

    IP Rating:IP20 indoor only
