PL1423 & PL1424 & PL1425-36W & 60W LED Multi / Tri Colour Panel Lights

Item number: PL1423 & PL1424 & PL1425

Product Features:

Input voltage: 200~240V AC 50/60Hz

Material: aluminium, PMMA & PS

High grade aluminium, with white powder coated finish.

Wattage: 36W & 60W

Power factor: 0.95

Epistar SMD2835 LED chips

Life time: 35,000hrs

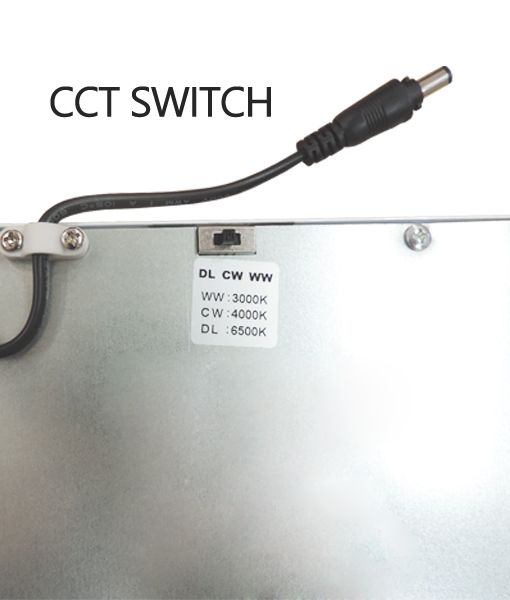

CCT changeable: 3000K – 4000K – 6500K

SAA approved LED driver and flex & plug. (L: 1200mm)

External driver with female joiner

Ambient temp: -20 to +40°C

Not suitable for dimming

Installation: Built-in(Standard) Surface Mount / Suspension Kits / Recessed (Optional)

Suitable for 2-way switching

Suitable for use with PIR & microwave sensors

Designed to fit standard T-Bar ceilings.

IP20 rated for indoor use only

Warranty: 3 Years


Description Downloads

Specification:

Code

Size

Watt

CCT (K)

Lumens(lm)

CRI

Beam

Dim

PL1423

595x595mm

36W

3000K

4000K

6500K

2900lm

3100lm

3000lm

80

110

No

PL1424

295x1195mm

36W

3000K

4000K

6500K

2900lm

3100lm

3000lm

80

110

No

PL1425

595x1195mm

60W

3000K

4000K

6500K

4800lm

5100lm

5000lm

80

110

No

Benefits:

Instant flicker free start, no stroboscopic effects, no ultraviolet or infrared radiation

Easy-installation for fast retro-fitting. Suitable for surface mount and suspending installation



Applications:

Designed for hotels, office, meeting room, home interior and school classrooms.



Packing:

Code

NW/PCS

(KG)

Inner box Size
(mm)

QTY/CTN

GW/CTN

(KG)

Shipping carton

Size (mm)

PL1423

3.55

L675×W630×H55

4 PCS

16.80

L695×W245×H655

PL1424

3.50

L1275×W330×H55

4 PCS

16.50

L1295×W245×H355

PL1425

6.5

/

1 PCS

8.00

L1295×W55×H650
