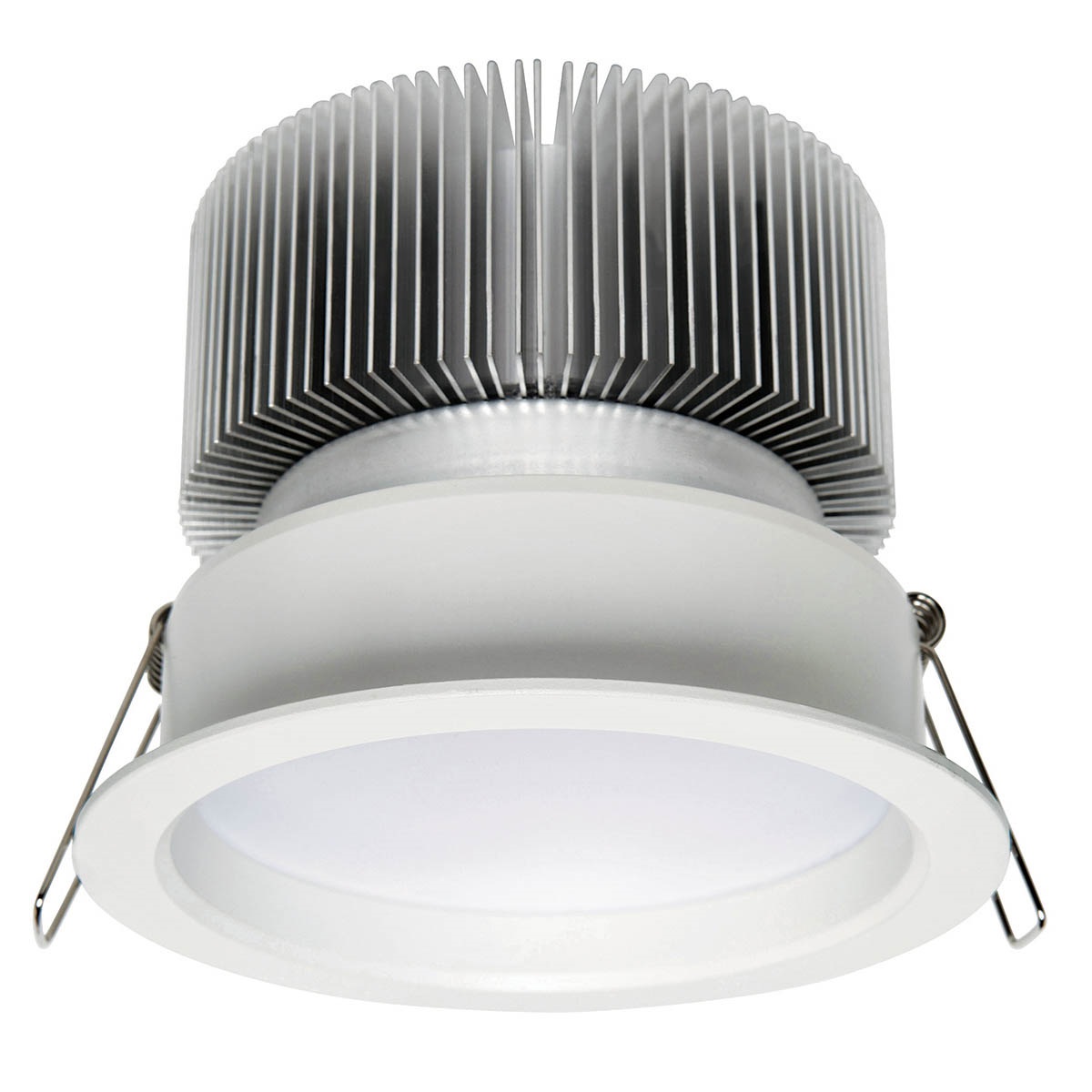

DL1105 & DL1106- 11W & 13W Dimmable LED Downlight

Item number: DL1105 & DL1106

Specification :

Input Voltage: 200-240V 50/60Hz

Housing Color: White

Power: 11W & 13W

Total rating power (Inc. Driver): 13W &15W

Beam angle: 90 degree

Dimmable: YES

PF: 0.90

Efficacy: 80LM/W

LED: COB LED

CRI : 82

Material : Aluminium body + PMMA Diffuser

Warranty : 3 Years

Description Downloads

Specification:

Code

Size

(mm)

Watt

(W)

CCT

(K)

Lumens

(LM)

Cutout

(mm)

Beam

angle

CRI

PF

Dimmable

DL1105

∅100* H80

11W

3000K 4000K 5000K

6500K

WW 850lm

CW 900lm

70-93

90°

82

0.95

YES

DL1106

∅112* H88

13W

WW 950lm

CW 1000lm

93

Feature:

1. High quality COB LED for superior light output, LM80 approved
2. High-grade aluminium construction with gimbal/ fixed design.
3. SAA, C-Tick, CE, RoHS Approved dimmable led driver with 0.6m flex & plug.
4. Fits both 75 and 92mm cut outs and ideal for retro-fit applications.
5. White powder coated finish.
6. Long lasting up to 35,000hrs*.
7. It's easy to install and perfectly replacing the traditional lighting.
8. The products have been tested compatible with most Australia different brand dimmers.

Applications:

Exhibition halls, supermarkets and shopping malls, other indoor and commercial lighting, locations.

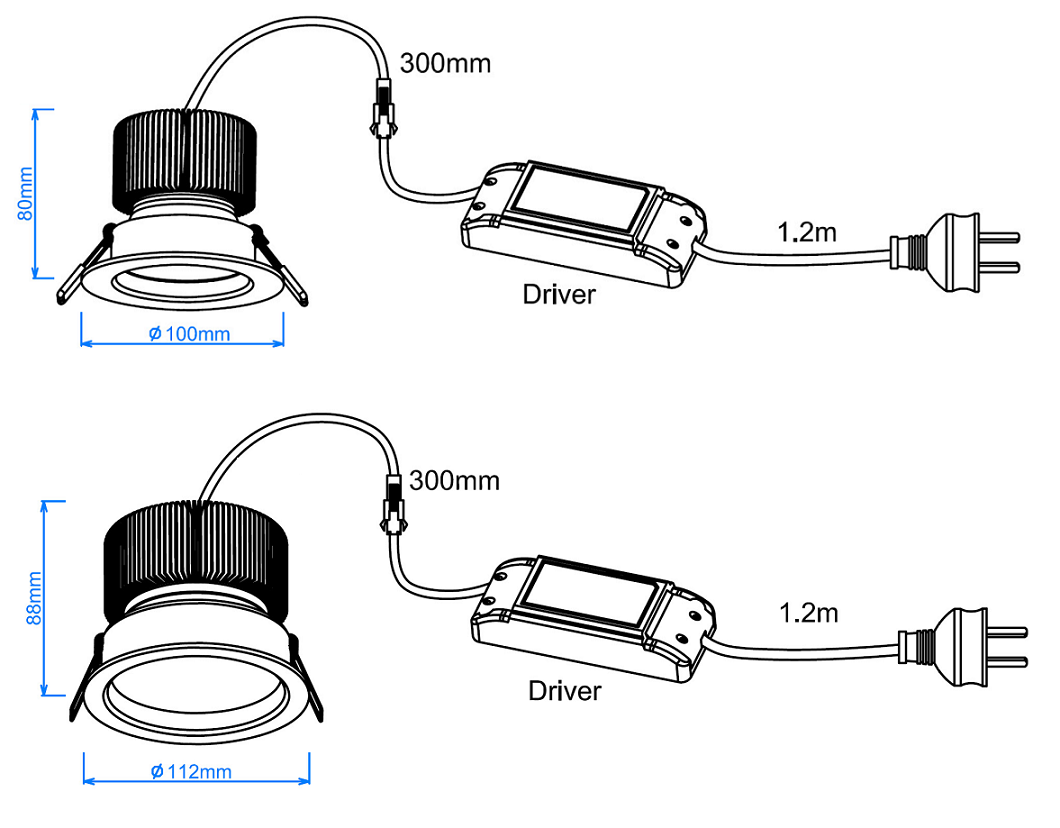

Dimension:

Packing:

Code

NW/PCS

(KGS)

Color box

(mm)

Qty/CTN

(PCS)

GW/CTN

(KGS)

Outer Carton

(mm)

DL1105

0.40

130130105

24

12.00

540410240

DL1106

0.55

140130115

24

15.50

540440260
