DL1107- 8W Dimmable LED Downlight

Item number: DL1107

Specification :

Input Voltage: 200-240V  50/60Hz

Shape Color: White

Product size : Dia. 100* H57mm

Cut out size:  70-93mm

Rate Power8W

Total power (incl.driver): 9.5W

Beam angle:  40 degree

DimmableYES

PF0.95

Efficacy : 80LM/W

Lumens : WW 750lm    CW 800lm

LEDHigh lumen COB LED

CCT3000K / 4000K / 5000K / 6500K

CRI : 80

Heat sink MaterialAluminium

IP Rating :IP20



Description Downloads

Features:

1.  High quality COB LED for superior light output, LM-80 Approved.

2.  High-grade aluminium construction with gimbal/ fixed design.

SAA, C-Tick, CE, RoHS Approved dimmable led driver with 0.6m flex & plug.

3.  Fits both 75 - 90mm cut outs and ideal for retro-fit applications.

4.  White powder coated finish.

5.  Long lasting up to 35,000hrs*.

6.  It's easy to install and perfectly replacing the traditional lighting.

7.  The products have been tested compatible with most Australia different brand dimmers.

8.  2 Years Warranty


Applications:

Exhibition hall, Supermarkets and shopping malls, other indoor and commercial lighting locations .

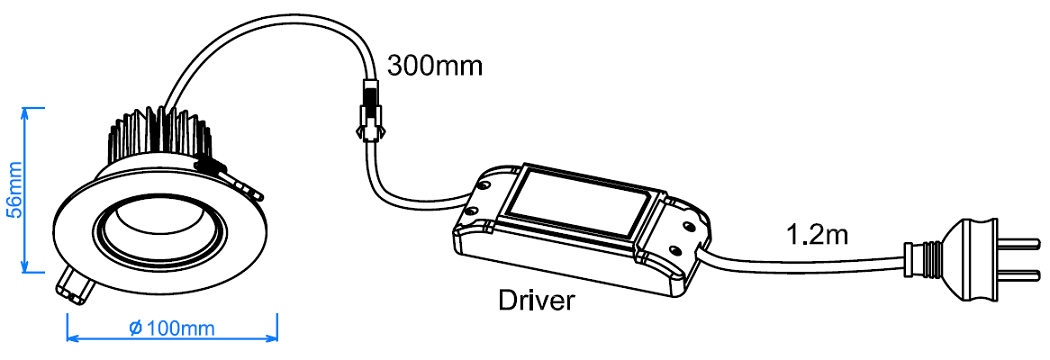

Dimension:



Packing:


Code

NW/PCS

(KGS)

Color box

(mm)

Qty/CTN

(PCS)

GW/CTN

(KGS)

Outer Carton

(mm)

DL1107

0.38

125*125*100

24

11.50

520*400*230
