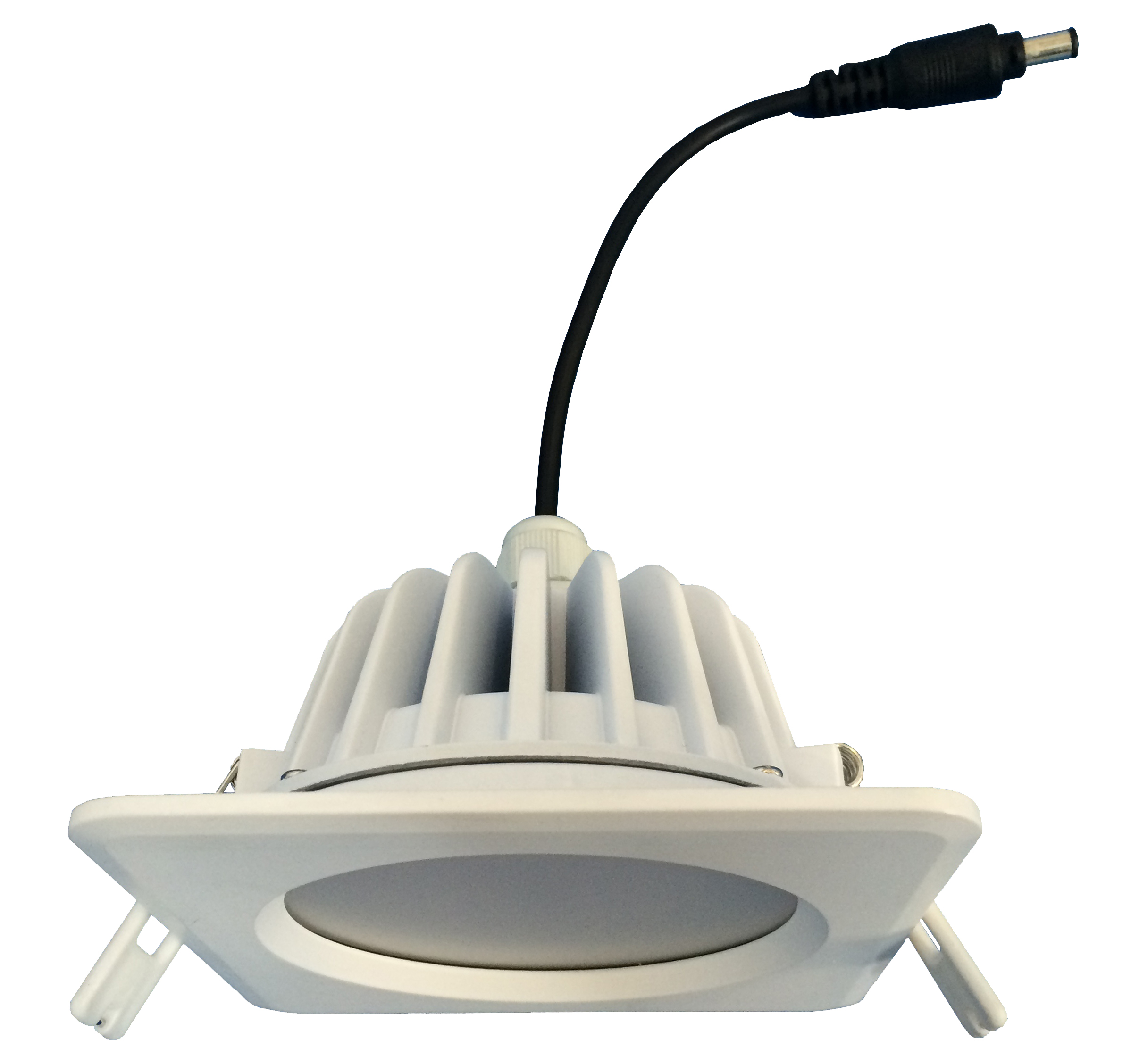

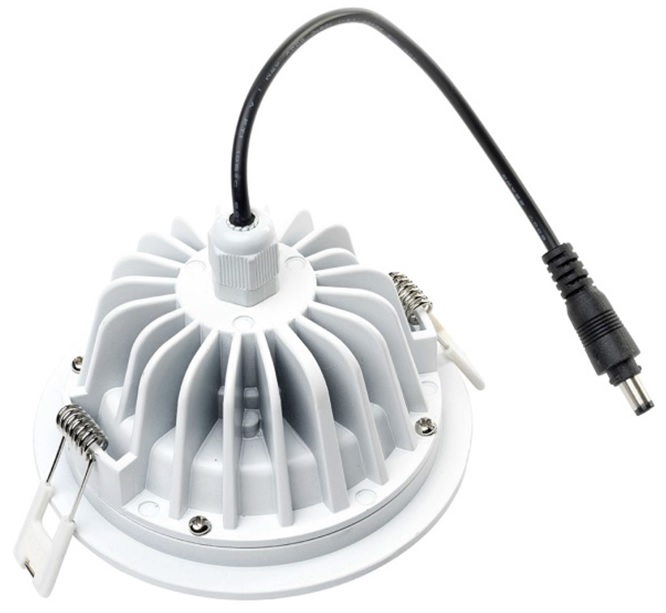

DL1116 & DL1148- 11W Dimmable IP65 Waterproof LED Downlight

Item number: DL1116 & DL1148

Specification:

Input Voltage: 200-240V 50/60Hz

Housing Color: Round- White

Power: 11W

Total rating power (Inc. Driver): 13W

Beam angle: 100 degree

Dimmable: YES

PF: 0.90

Efficacy: 80LM/W

LED: SMD LED

CRI : 85

Material : Aluminium body + PMMA Diffuser

Warranty : 3 Years

Description Downloads

Specification:

Code

Size

(mm)

Watt

(W)

CCT

(K)

Lumens

(LM)

Cutout

(mm)

Beam

angle

CRI

Dimmable

DL1116

∅ 108 * H50

11W

3000K 4000K 5000K

6500K

WW 850LM

CW 900LM

95mm

100°

0.95

YES

DL1148

L108*W108*H50

95*95mm

Feature:

1. Dia-cast aluminium body .

2. SAA Approved external dimmable LED Driver with 1m flex & Plug fitted .

3. IP65 Waterproof

4. Lifespan up to 30,000hrs .

5. Rated for IC for abutted and covered usage to allow for covering with thermal insulation .

Application:

All interior Including wet areas ,such as bathroom,also suitable for outdoor areas .

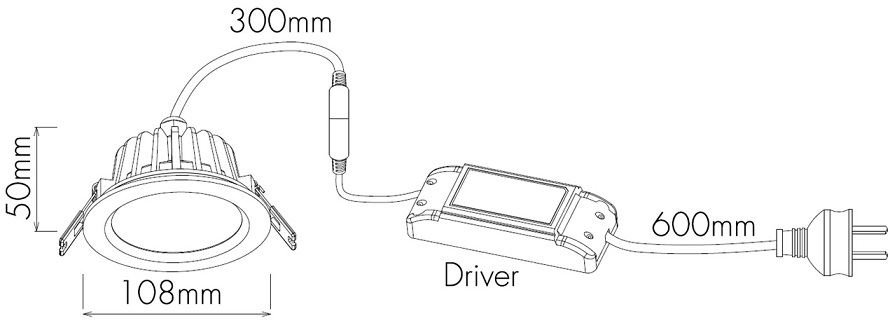

Dimension:

Packing:

Code

NW/PCS

(KGS)

Color box

(mm)

Qty/CTN

(PCS)

GW/CTN

(KGS)

Outer Carton

(mm)

DL1116

0.450

125125100

24

13.30

520400230

DL1148

0.465

125125100

24

13.60

520400230
