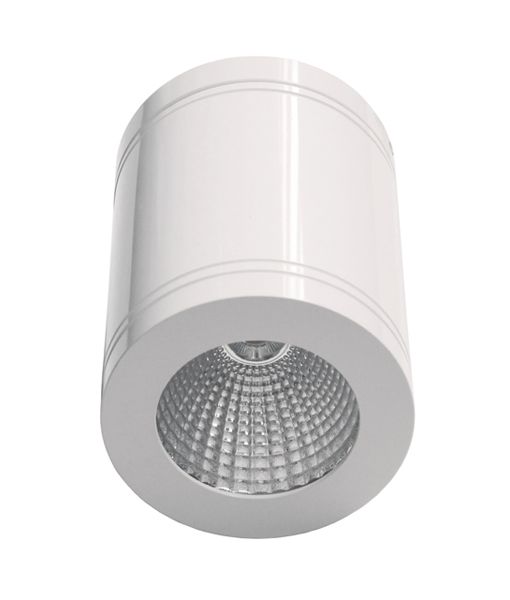

DL1129 IP65 Surface Mounted 12W Dimmable LED Downlight,

Item number: DL1129

Specification :

Input Voltage: 200-240V  50/60Hz

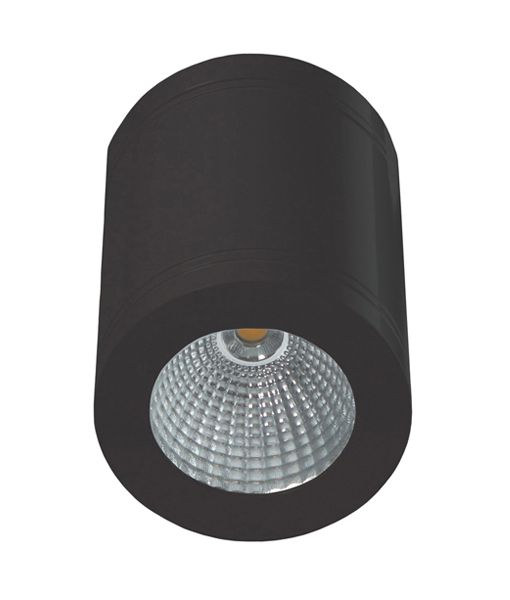

Shape Color: White or Black

Product size : Dia.105mm * H146mm

Rate Power:  12W

Beam angle:  100° (Opaque Diffuser)

                      40 ° (Clare Diffuser)

Dimmable YES

PF 0.95

Efficacy : 85LM/W

Lumens : WW 850LM  CW 900LM

LED High lumen COB LED

CCT: 3000K / 4000K / 5000K / 6500K

CRI : 82

Material Aluminium Heat sink + PMMA Diffuser

IP Rating : IP65
Installation ways : Surface mounted

Warranty : 3 Years

Description Downloads

Features:


1.  A quality downlight that is easy to install, especially on hard to cut surfaces like concrete ceilings.

2.  Clear or Opaque Diffusers

3.  COB LED technology for superior light output

4.  High-grade diecast alloy housing, steel bracket and aluminium heatsink

5.  SAA approved integrated dimmable LED driver

6.  Long lasting up to 30,000 hours.

7.  IP65 Waterproof.

8.  It's easy to install and perfectly replacing the traditional lighting.

The products have been tested compatible with most different brand dimmers.

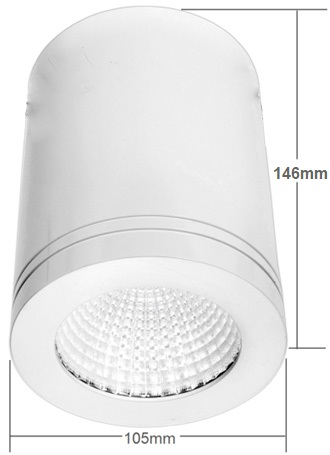

Dimension:




Packing:



Code

NW/PCS

(KG)

Color box

(mm)

Qty / CTN

(PCS)

GW/CTN

(KGS)

Outer carton

(mm)

DL1129

0.95

L115xW115xH165

12 PCS

13.00

L365xW250xH365
