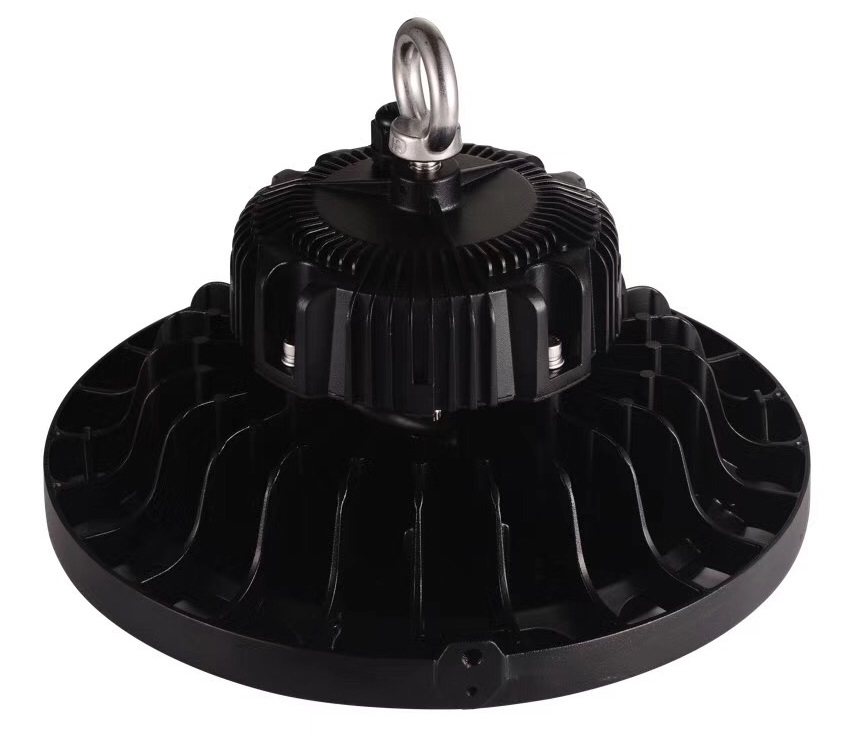

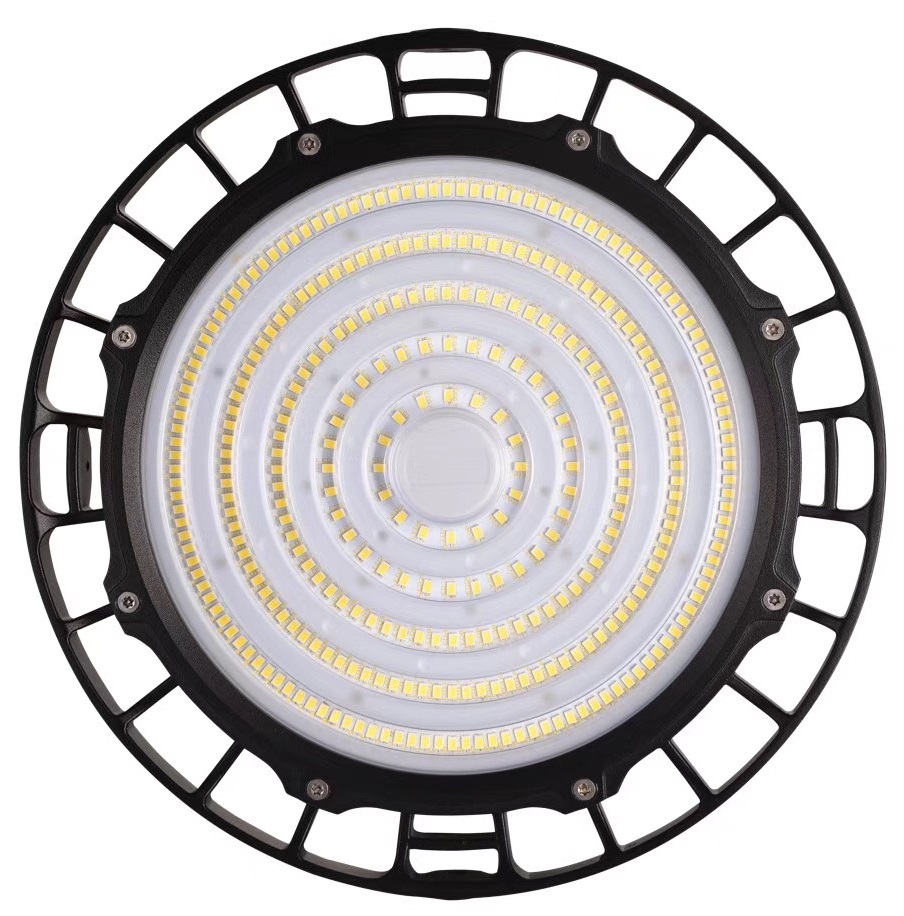

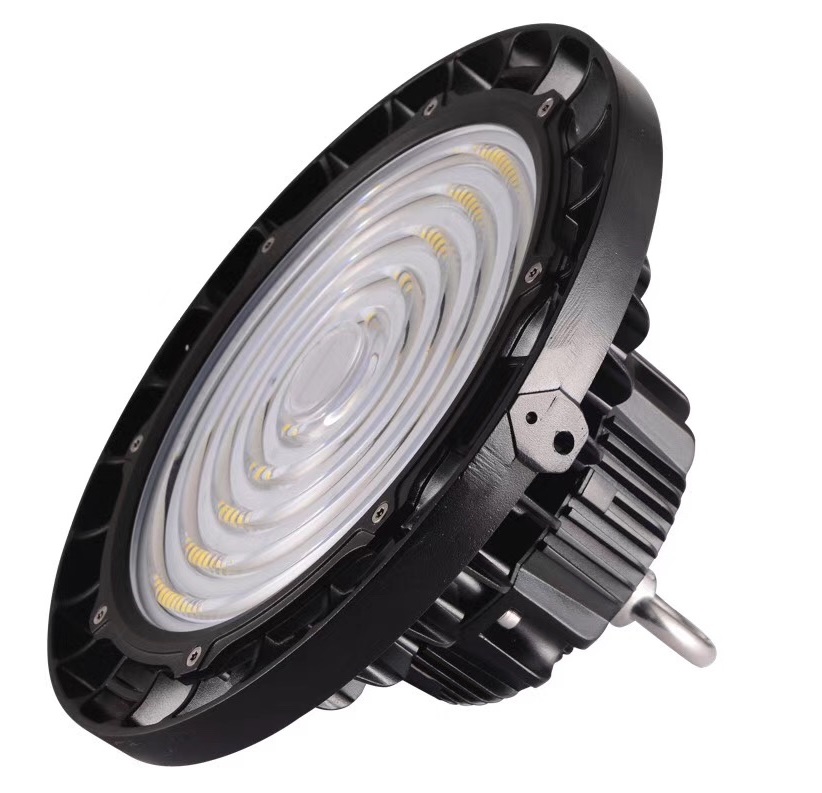

HB1707-200W LED UFO Highbay Light

Item number: HB1707

Specification:

Input Voltage: AC85-265V 50/60Hz

Power:  200W

Dimension: Dia.330 mm

Luminous flux: 24000lm

Lamp efficiency: 120lm/W

LED: High Lumen SMD 3030

Material: Die-cast aluminium body, PC diffuser

Body Color : Black (default)、Gray ( optional)

Light degradation rate: 25000h ≤ 30%

Color rendering index: Ra>85

Power factor: >0.95

Beam angle : 60°/90°/120° available

Rated life: ≥50000hrs

Color temperature: 3000K-6500K all available

Working temperature-30~+50°C

IP Rating: IP65

LED driver Brand: ZH  &  Meanwell Driver

Dimming (Optional) 3 in 1 dimming(PWM, 1-10V, Resistor).Dali

IK Class: IK08

Installation mode:Chain (default), Pole or Bracket (optional)


Description Downloads

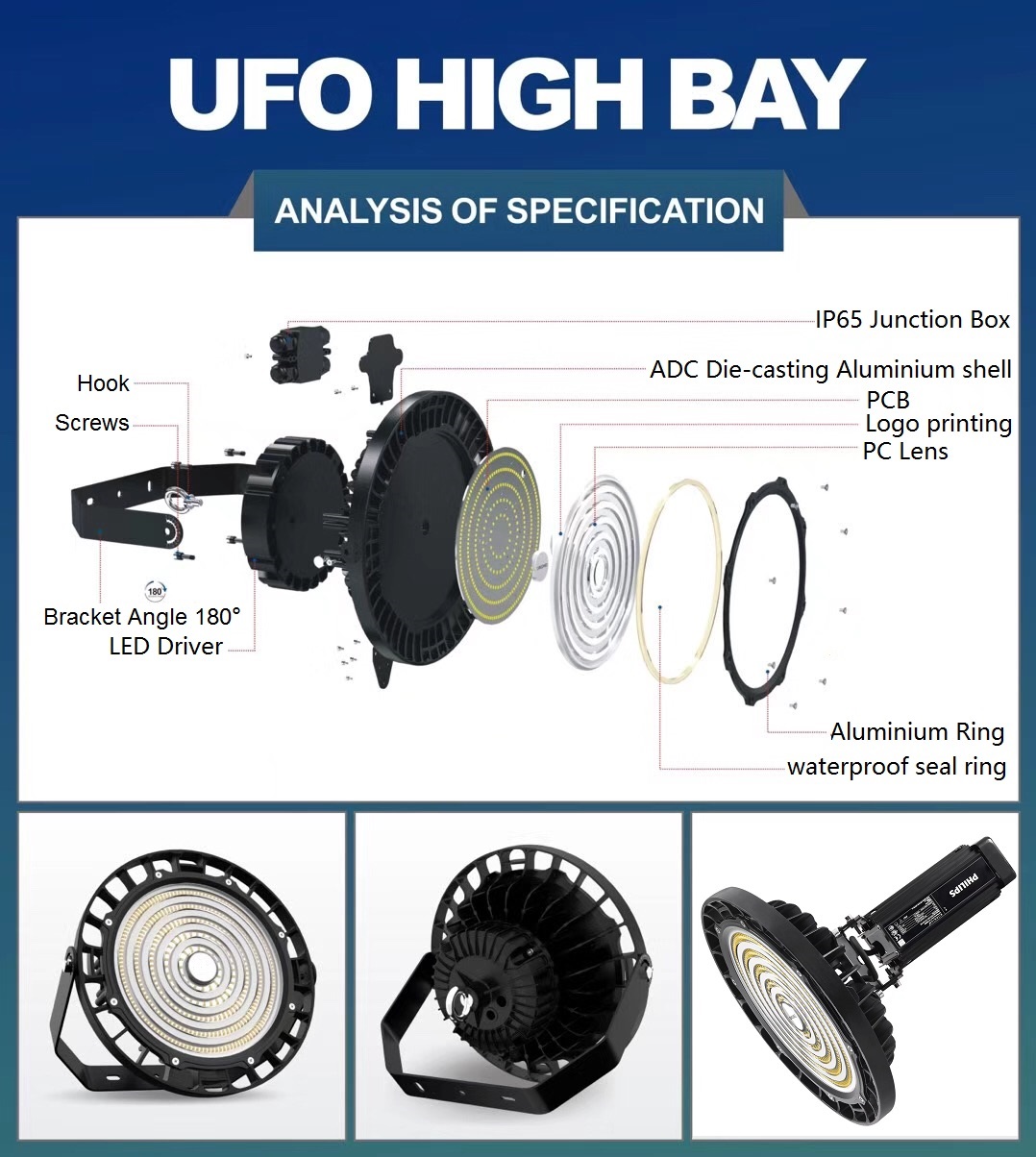

Feature:

1.  Hollow heat sink design increase more airflow for better heat dissipation.

2.  LED and heat sink are parallel, no dark area, no shadow.

3.  SMD 3030 LED Chips, 120lm/W.

4.  LED junction temperature less than 85℃.

5.  Meanwell HBG/ELG driver.

6.  60°/90°/ 120°beam angle (optional).

7.  Waterproof IP65 design, suitable to damp & wet location.

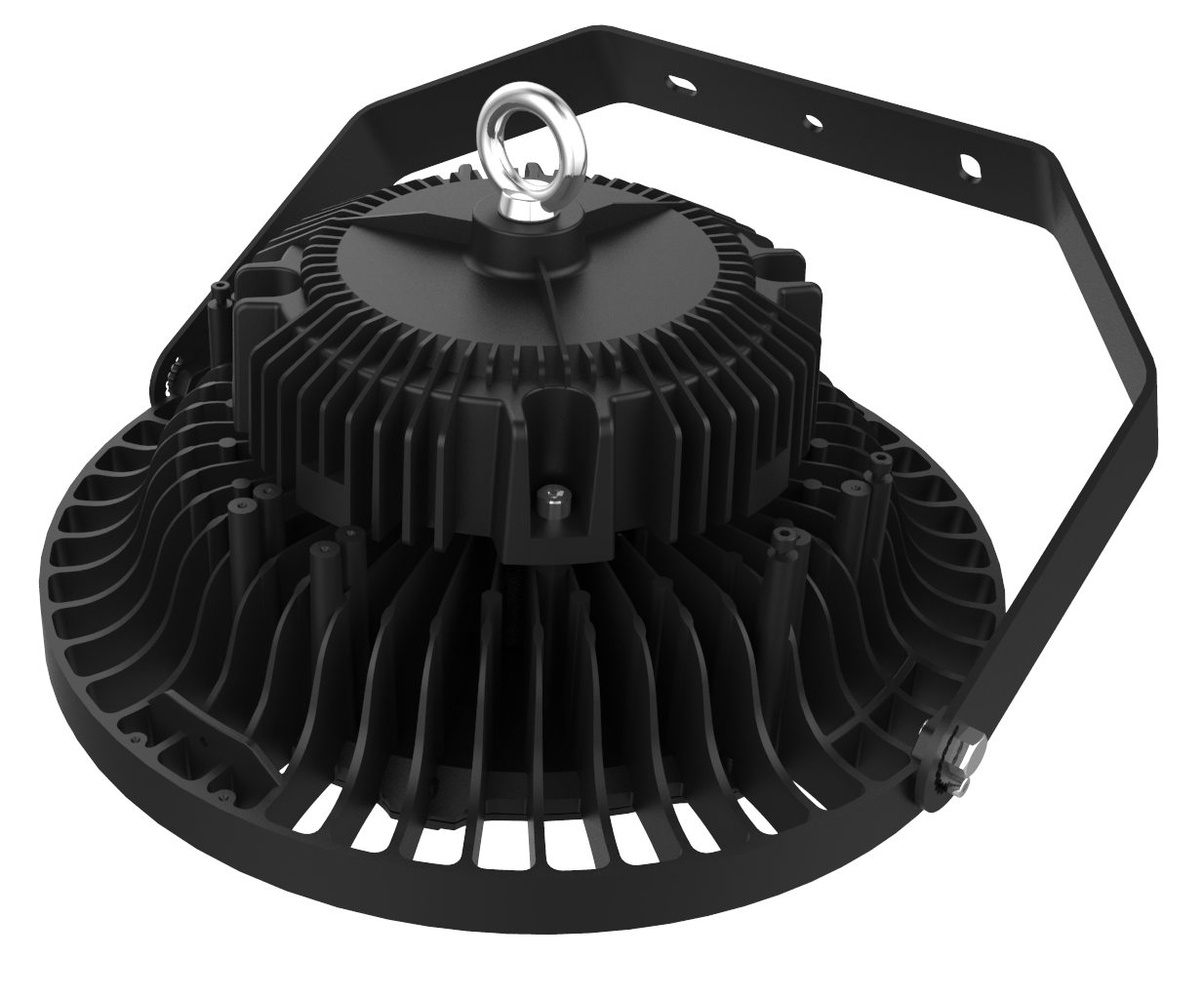

8.  Two installations: Bracket & Hooking Hang for options.

9.  LM79/LM80/IES reports available.

10. ETL/CE/RoHS/FCC/LM80 certification.

11.  5 years warranty.


Application:


LED UFO high bay fixtures are ideal for Warehouses, Manufacturing Facilities Gymnasi-ums, Aviation Hangars, Convention Centers, Big Box Retail Stores, Cold Storage Facilities.

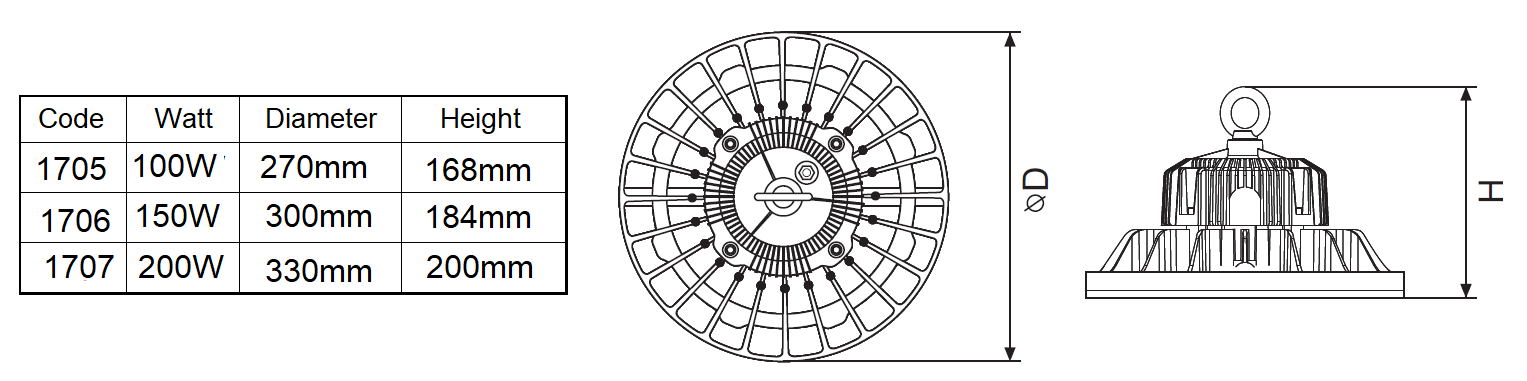

Dimension:



Packing:

Code

NW/PCS

(KG)

Color box

(mm)

Qty / CTN

(PCS)

GW/CTN

(KGS)

Outer carton

(mm)

HB1705

3.0

/

1

3.50

330*330*180

HB1706

3.8

/

1

4.6

375*350*200

HB1707

5.2

/

1

6.2

400*400*205
