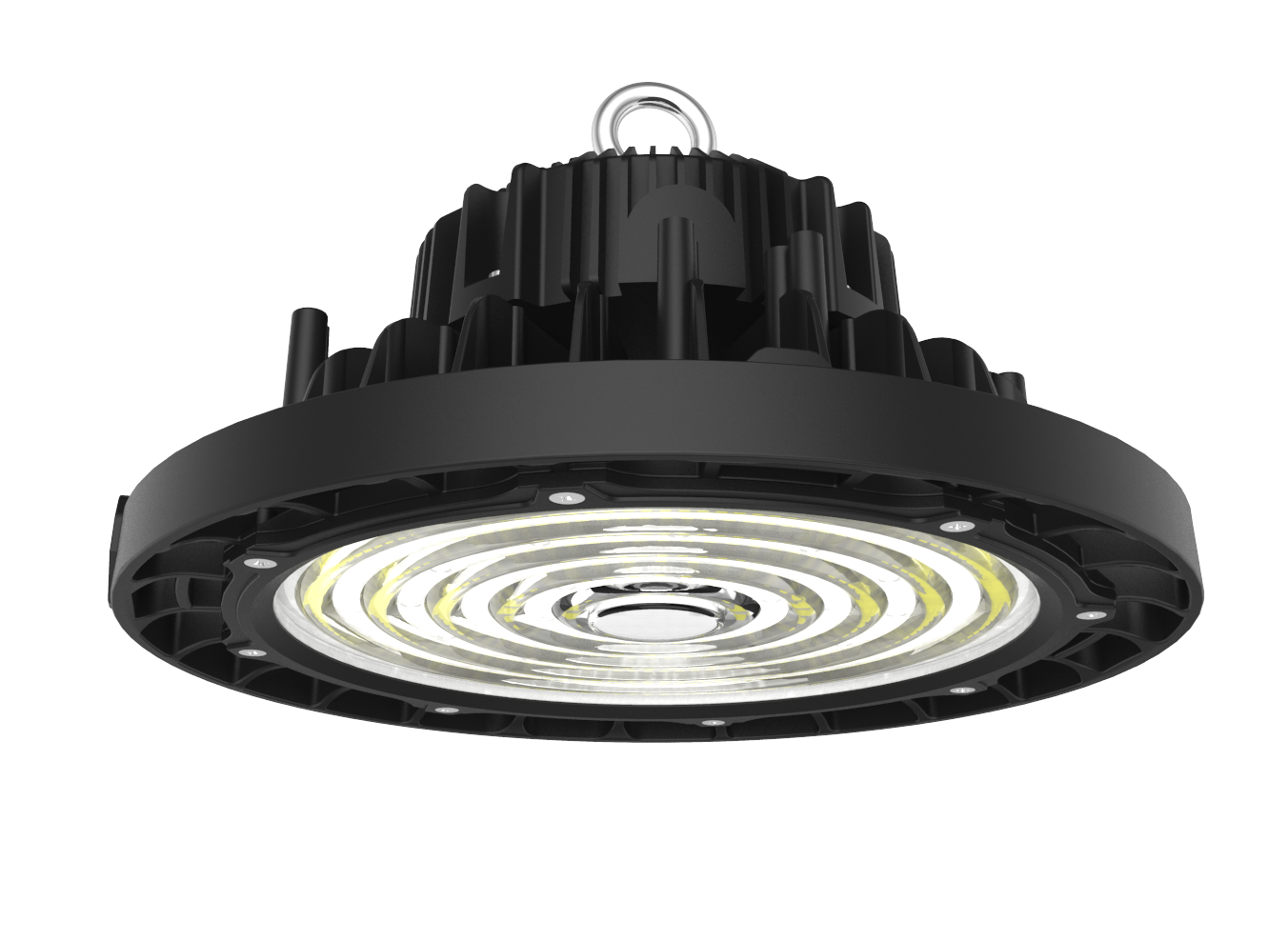

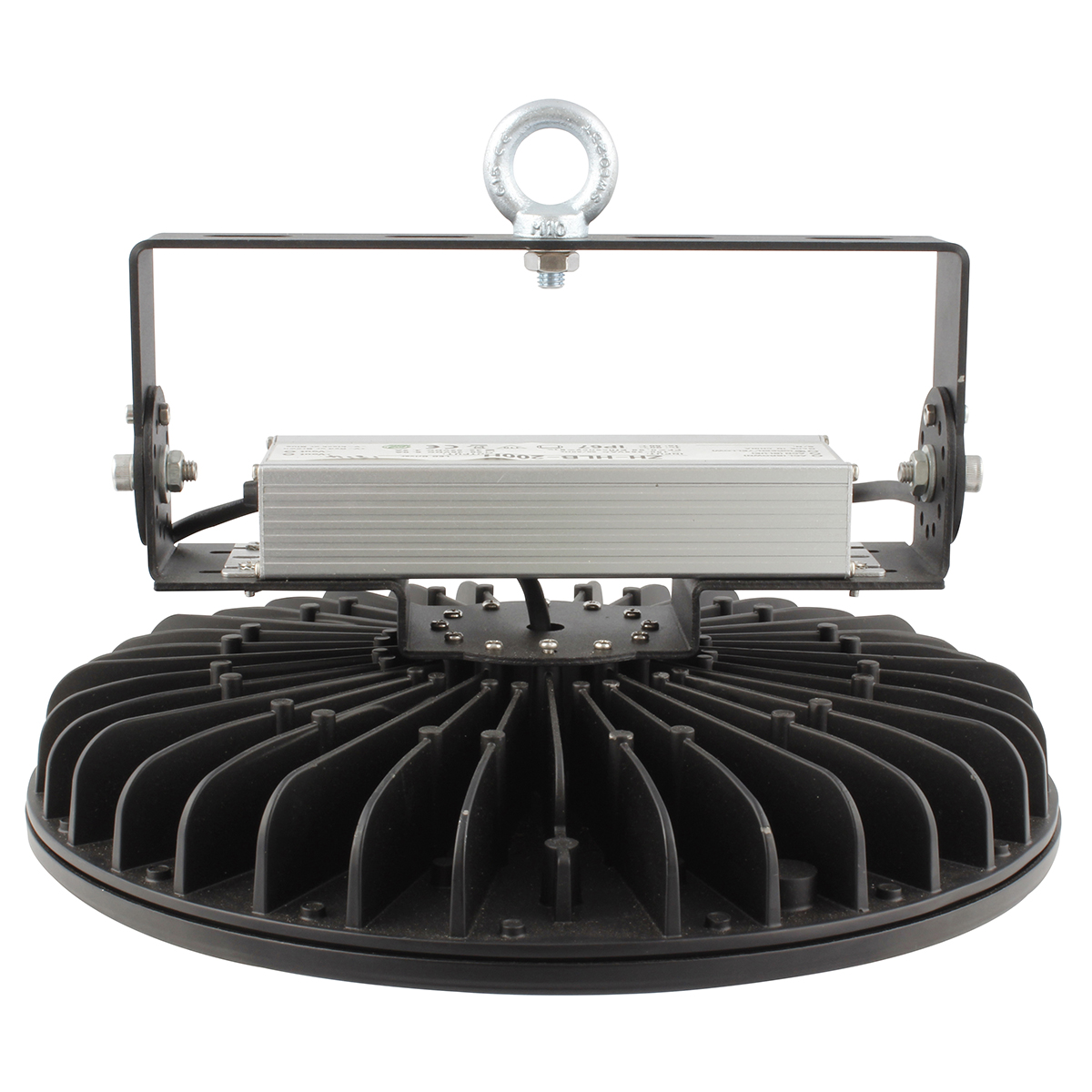

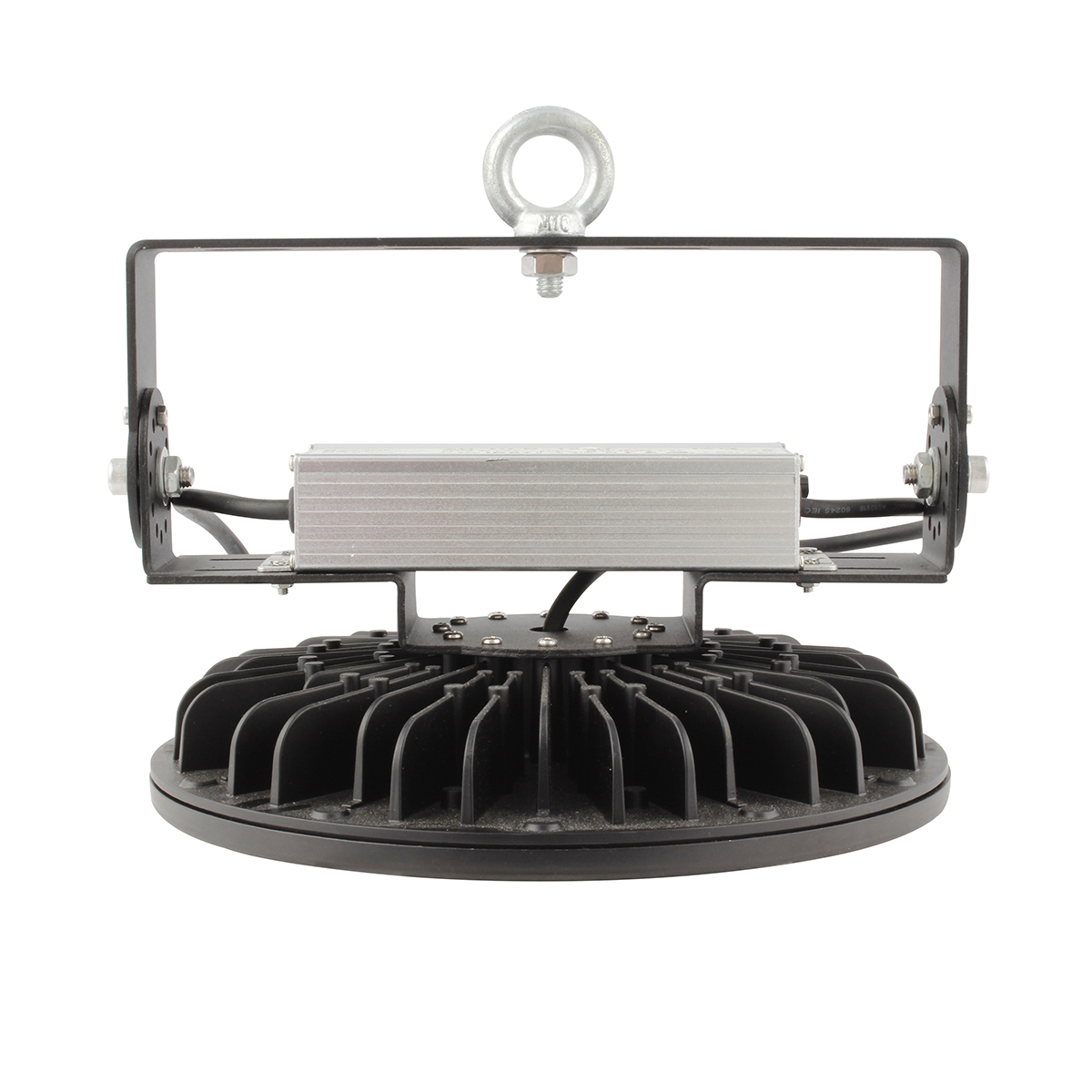

HB1713-120W LED UFO Highbay Light-IP67

Item number: HB1713

Specification:

Input Voltage: AC85-265V 50/60Hz

Power:  120W

Dimension: Dia.270 mm

Luminous flux: 14400lm

Lamp efficiency: 120lm/W

LED: High Lumen SMD 3030

Material: Die-cast aluminium body, Tempered glass

Body Color Black (default)、Gray ( optional)

Light degradation rate: 25000h ≤ 30%

Color rendering index: Ra>85

Power factor: >0.95

Beam angle 90°/120° available

Rated life: ≥50000hrs

Color temperature: 3000K-6500K all available

Working temperature-30~+50°C

IP Rating: IP67

LED driver Brand: ZH  or  Meanwell Driver

Dimming (Optional) :3 in 1 dimming(PWM, 1-10V, Resistor).Dali

IK Class: IK08

Installation mode:Bracket with hook (default)

Description Downloads

Feature:

1.   Hollow heat sink design increase more airflow for better heat dissipation.

2.   Thermal management system will begin to reduce power/ light output       when ambient temperature increases to above 45 degress Celsius.

3.   LED and heat sink are parallel, no dark area, no shadow.

4.   SMD 3030 LED Chips, 120lm/W.

5.   Black Diecast alloy housing with painted steel bracket.

6.   304 stainless steel hook and external bolts.

7.   High performance LED SMD Arrays.

8.   High efficiency LED driver with SAA approved 1.5m flex & plug.

9.   60°/90°/ 120°beam angle (optional).

10.  Waterproof IP67 design, suitable to damp & wet location.

11.  LM79/LM80/IES reports available.

12.  SAA/ETL/CE/RoHS/FCC/LM80 certification.

13.  5 years warranty.

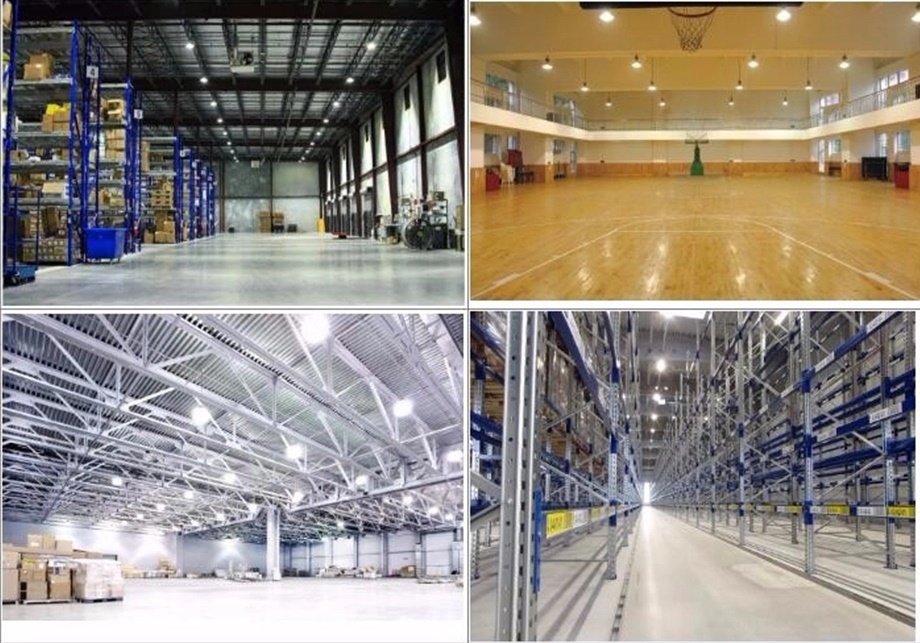

Application:

LED Highbay lighting is the ideal answer for factories, stockrooms, supermarkets, gyms, petrol stations, warehouses, and other places that may need lighting. Designed for applications of 6 metres or more with an IP67 rating guarantees that these lights are waterproof and can be applied both indoors and outdoors.

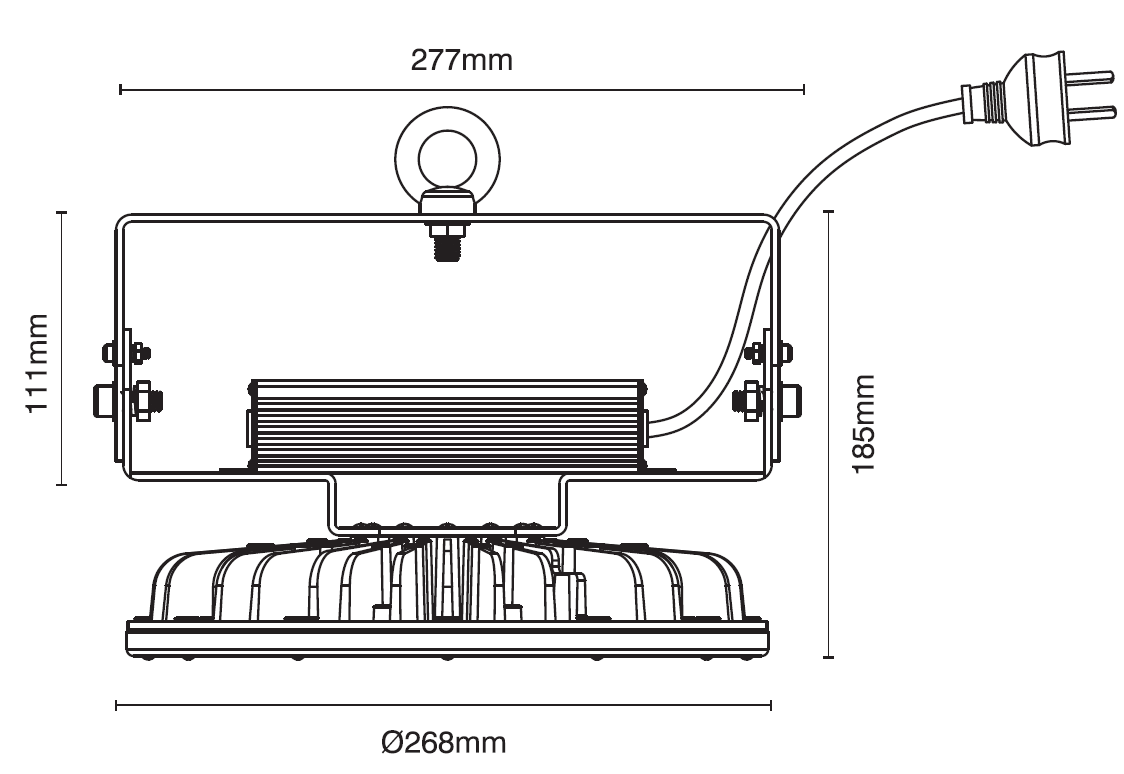

Dimension:



Packing:

Code

NW/PCS

(KG)

Color box

(mm)

Qty / CTN

(PCS)

GW/CTN

(KGS)

Outer carton

(mm)

HB1713

3.8

/

1

4.30

310*310*180

HB1714

5.4

/

1

6.10

390*390*210
