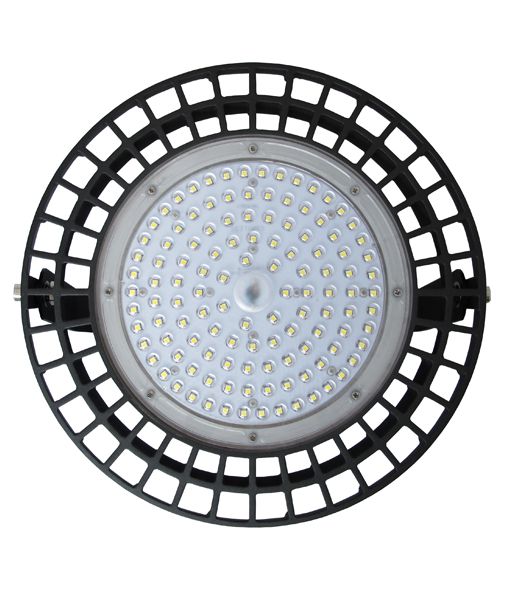

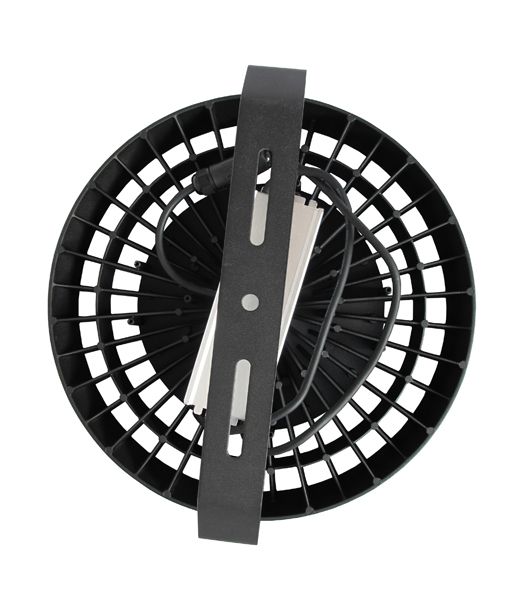

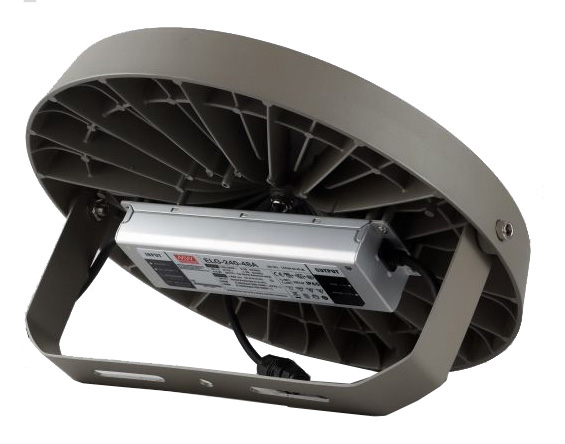

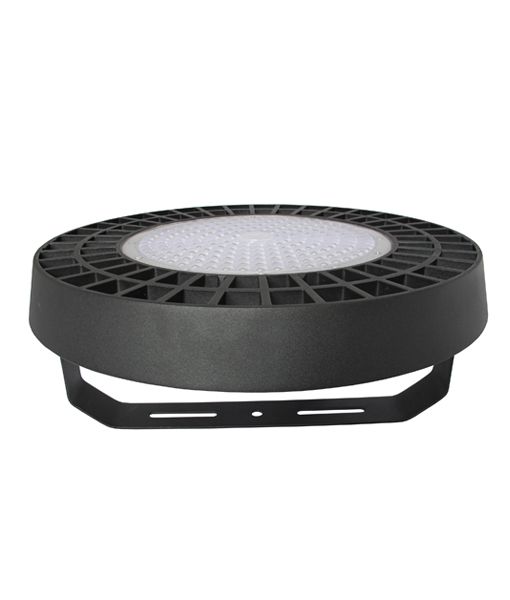

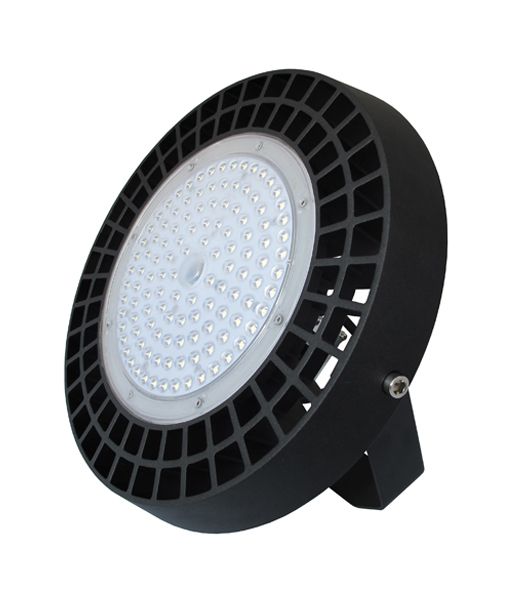

HB1703-200W LED UFO highbay Light

Item number: HB1703

Specification:

Input Voltage: AC85-265V 50/60Hz

Power: 150W

Dimension: Dia.400mm

Luminous flux: 24000lmc

Lamp efficiency: 120lm/W

LED: High Lumen SMD 3030

Material: Die-cast aluminium body, PC diffuser

Body Color : Grey (default)、Black ( optional)

Light degradation rate: 25000h ≤ 30%

Color rendering index: Ra>85

Power factor: >0.95

Beam angle : 60°/90°/120° available

Rated life: ≥50000hrs

Color temperature: 3000K-6500K all available

Working temp.-30~+50°C

IP Rating: IP65

LED driver Brand: ZH  &  Meanwell Driver

Mounting Options: Bracket & hooking hang

IK Class: IK08

Certificate : CE, ROHS, SAA,TUV


Description Downloads

Feature:


1.  Hollow heat sink design increase more airflow for better heat dissipation.

2.  LED and heat sink are parallel, no dark area, no shadows.

3.  SMD 3030 LED Chips, 120lm/W.

4.  LED junction temperature less than 85℃.

5.  Meanwell HBG/ELG driver.

6.  60°/90°/ 120°beam angle (optional).

7.  Waterproof IP65 design, suitable to damp & wet location.

8.  Two installations: Bracket & Hooking Hang for options.

9.   LM79/LM80/IES reports available.

10.  ETL/CE/RoHS/FCC/LM80 certification.

11.  5 years warranty.


Application:


LED UFO high bay fixtures are ideal for Warehouses, Manufacturing Facilities Gymnasi-ums, Aviation Hangars, Convention Centers, Big Box Retail Stores, Cold Storage Facilities.

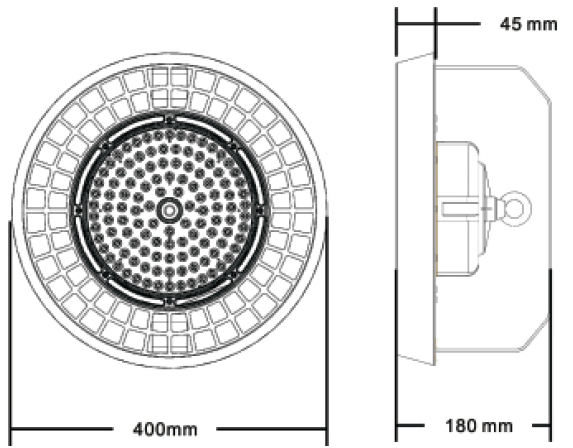

Dimension:



Packing:

Code

NW/PCS

(KG)

Color box

(mm)

Qty / CTN

(PCS)

GW/CTN

(KGS)

Outer carton

(mm)

HB1703

6.00

/

1

7.20

460*460*140
