Products

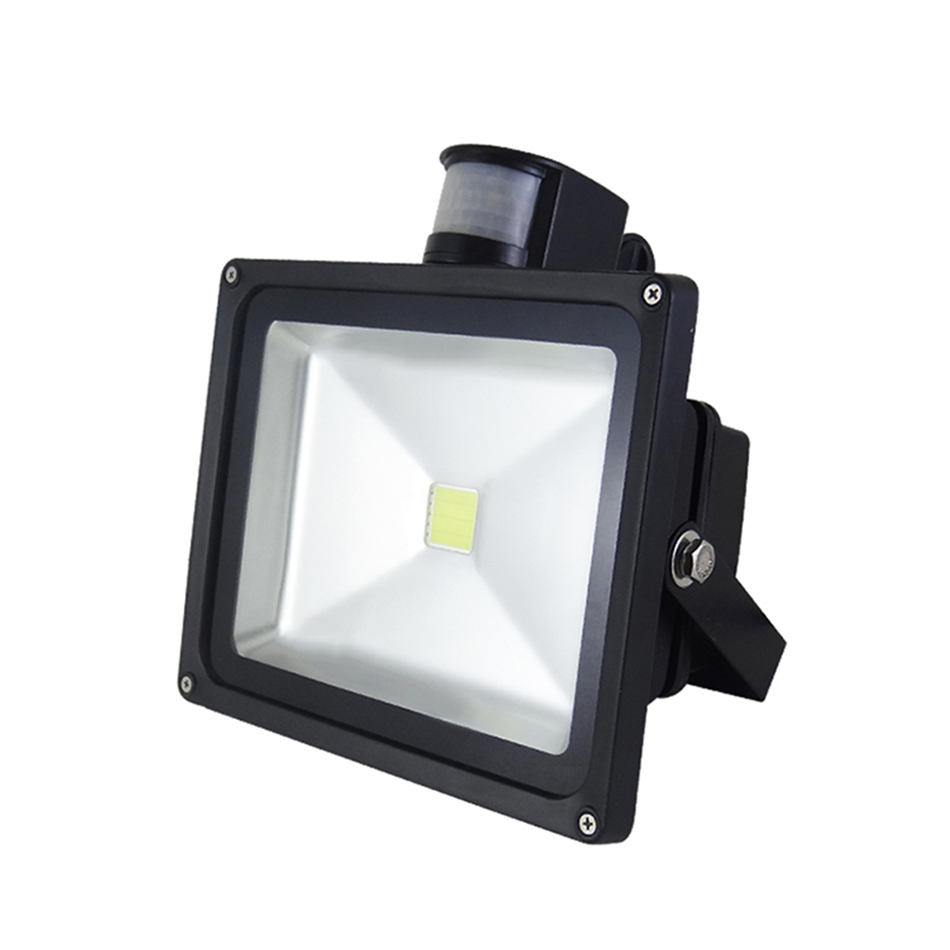

FL1606 & FL1607 & FL1608 -20W ,30W,50W High Lumen COB LED Floodlight With Sensor

Item number: FL1606 & FL1607 & FL1608

Product Features:

Input voltage: 200~240V AC 50/60Hz

Material:Die-Casting Aluminium + tempered glass

Wattage: 20W & 30W & 50W

Power factor: 0.95

Efficacy (lm/W):100LM/W

Lamp: COB LED

CCT: 3000K/ 42000K / 5000K / 6500K

CRI:>83

Beam angle:90-100 degree

Life time: 35,000hrs

SAA approved LED driver and Flex with Plug

Working Temp. -30°C ~ +50°C

Installation:Surface Mounted

Sensor: Yes

Detection angle:180°

Detection Distance:12m

Delay time:10sec-10 min

IP Rating:IP65

Warranty:3 Years

Description Downloads

Specification :

Code

Dimension

LED

Watt

CCT (K)

Lumens(lm)

CRI

Beam angle

PF

Sensor

IP Rating

FL1606

180*140*95

COB

20W

3000K  4200K

5000K

6500K

WW 1800LM

CW 2000LM

80

90-100

>0.9

YES

IP65

FL1607

225*185*112

30W

WW 2800LM

CW 3000LM

FL1608

285*235*140

50W

WW 4800LM

CW 5000LM



Feature:

Box style LED floodlight.

Black / Grey painted outer casing and clear tempered safety glass lens.

Hinge to direct light, Do-It-Yourself installation.

High Power COB LED

Supplied with 3-pin plug and 1m lead

Available in 10W, 20W, 30W 50W or 100W.

High intensity die-cast aluminium body, better heat dissipation structure materials,

High intensity tempered glass, it can resist the impact and friction , its luminous efficiency can reach up to 94%

IP65 waterproof Rated


Application:

LED flood light widely used in stage, advertising board, Stadium, yard, garden, lawn, park, plaza, workshop, warehouse, supermarket, shopping mall, exhibition hall, gas station, highway toll station, dock .

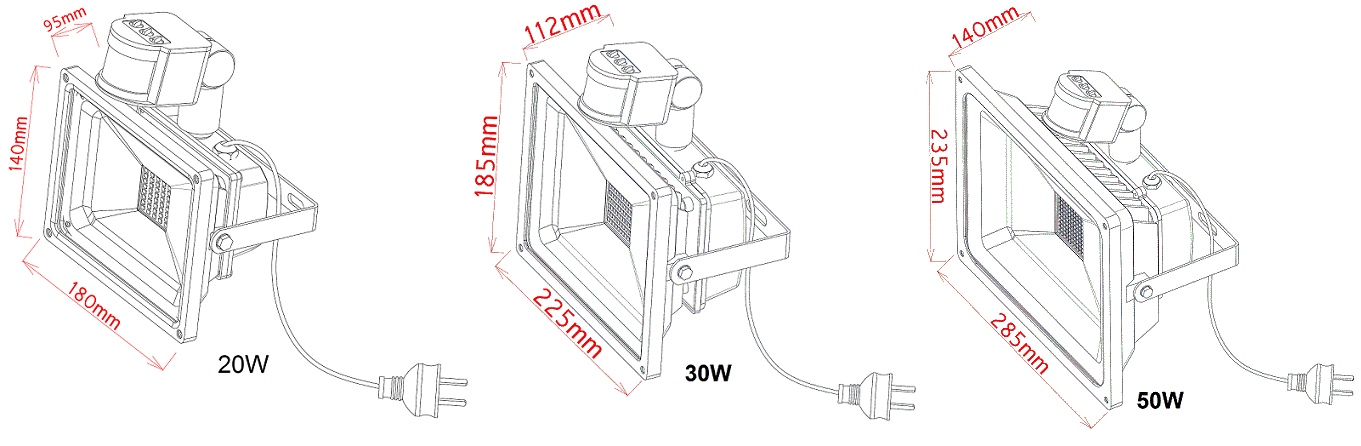

Dimension:





Packing:

Code

Net Weight

(KGS)

Color box

(mm)

Qty/CTN

(PCS)c

GW/CTN

(KGS)

Outer Carton

(mm)

FL1606

1.2 KGS

195*200*135

8

11.0

420*410*300

FL1607

1.6 KGS

235*225*155

8.5

470*260*340

FL1608

2.6 KGS

295*245*165

 4

13.0

510*320*360
