Products
Product Features:
Input voltage: 200~240V AC 50/60Hz
Material:Die-Casting Aluminium + tempered glass
Wattage: 20W & 30W & 50W
Power factor: 0.95
Efficacy (lm/W):100LM/W
Lamp: COB LED
CCT: 3000K/ 42000K / 5000K / 6500K
CRI:>83
Beam angle:90-100 degree
Life time: 35,000hrs
SAA approved LED driver and Flex with Plug
Working Temp. -30°C ~ +50°C
Installation:Surface Mounted
Sensor: Yes
Detection angle:180°
Detection Distance:12m
Delay time:10sec-10 min
IP Rating:IP65
Warranty:3 Years
Specification :
Code |
Dimension |
LED |
Watt |
CCT (K) |
Lumens(lm) |
CRI |
Beam angle |
PF |
Sensor |
IP Rating |
FL1614 |
180*140*95 |
SMD LED |
20W |
3000K 4200K 5000K 6500K |
WW 2000LM CW 2200LM |
80 |
90-100 |
>0.9 |
YES |
IP65 |
FL1615 |
225*185*112 |
30W |
WW 3000LM CW 3200LM |
|||||||
FL1616 |
285*235*140 |
50W |
WW 5000LM CW 5200LM |
Feature:

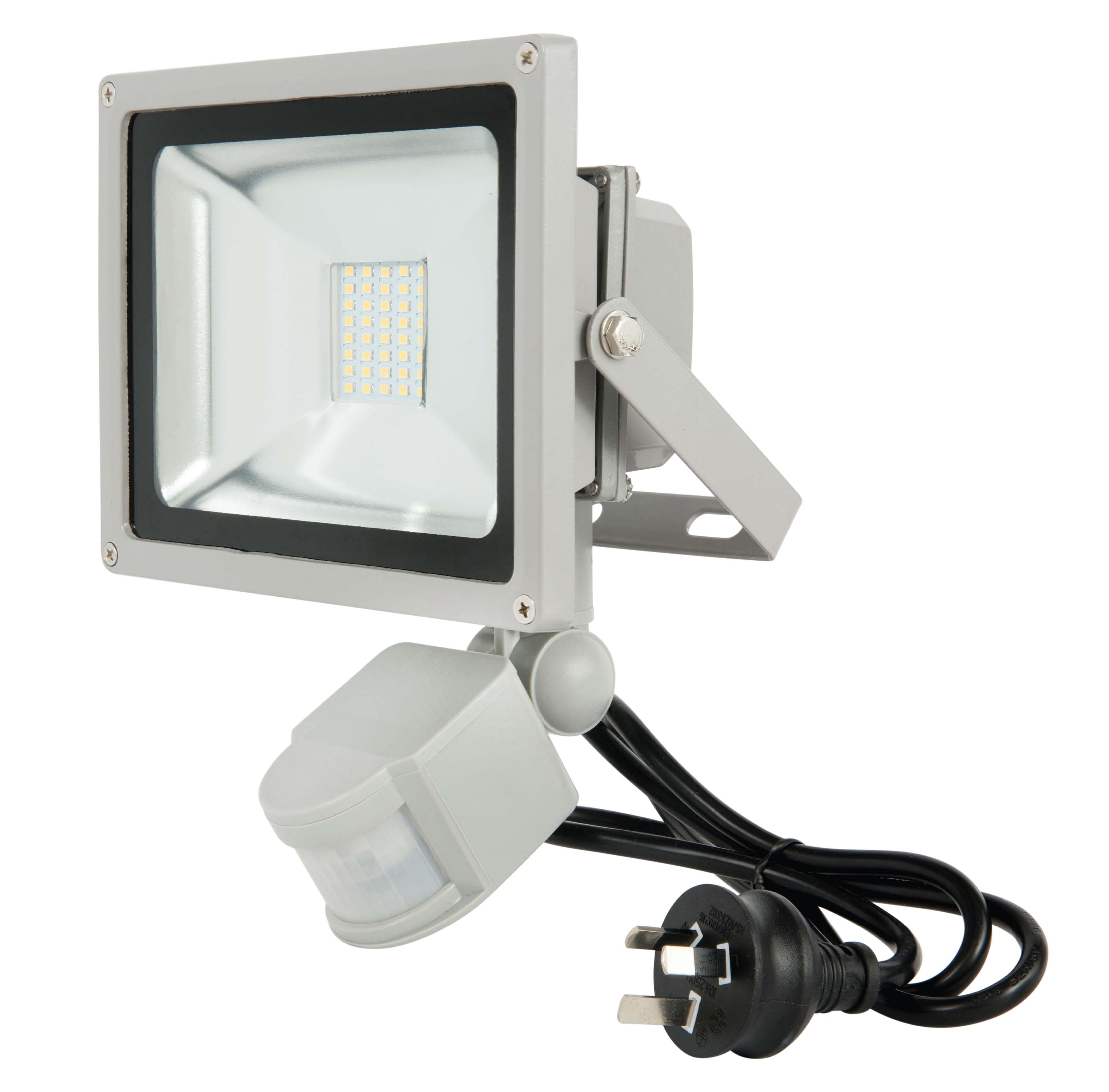

Box style LED floodlight.
Black / Grey painted outer casing and clear tempered safety glass lens.
Hinge to direct light, Do-It-Yourself installation.
High Power SMD LED
Supplied with 3-pin plug and 1m lead
Available in 10W, 20W, 30W 50W or 100W.
High intensity die-cast aluminium body, better heat dissipation structure materials,
High intensity tempered glass, it can resist the impact and friction , its luminous efficiency can reach up to 94%
IP65 waterproof Rated
Application:
LED
flood light widely used in stage, advertising board, Stadium, yard, garden,
lawn, park, plaza, workshop, warehouse, supermarket, shopping mall,
exhibition hall, gas station, highway toll station, dock .

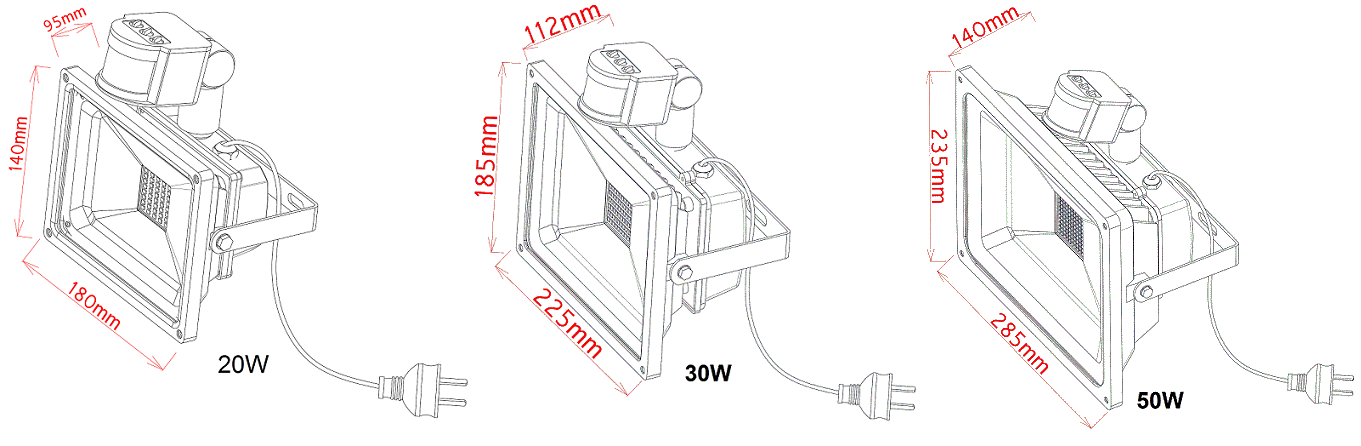

Dimension:
Packing:
Code |
Net Weight (KGS) |
Color box (mm) |
Qty/CTN (PCS) |
GW/CTN (KGS) |
Outer Carton (mm) |
FL1614 |
1.2 KGS |
195*200*135 |
8 |
11 |
420*410*300 |
FL1615 |
1.6 KGS |
235*225*155 |
4 |
8.5 |
470*260*340 |
FL1616 |
2.6 KGS |
295*245*165 |
4 |
13.0 |
510*320*360 |
