DL1122-8W Dimmable CCT Changable LED Downlight

Item number: DL1122

Specification:

Input Voltage : AC200-240V 50/60Hz

Housing Color: White

Ring Color : White/Brushed Nickel/Sliver

Product size : Dia. 115 * H57mm

Cut out size: 92mm

Power : 8W

Beam angle : 80 degree

Dimmable : YES

PF : 0.90

Efficacy : 85LM/W

LUMENS: 3000K 750lm 4200K 820lm 5000K 800lm

LED: SMD 2835 LED

CCT : LED Color Switchable 3000K , 4200K , 6500K

CRI: 82

Material : aluminium body + PC Diffuser

IP Rating : IP44

Description Downloads

Features:

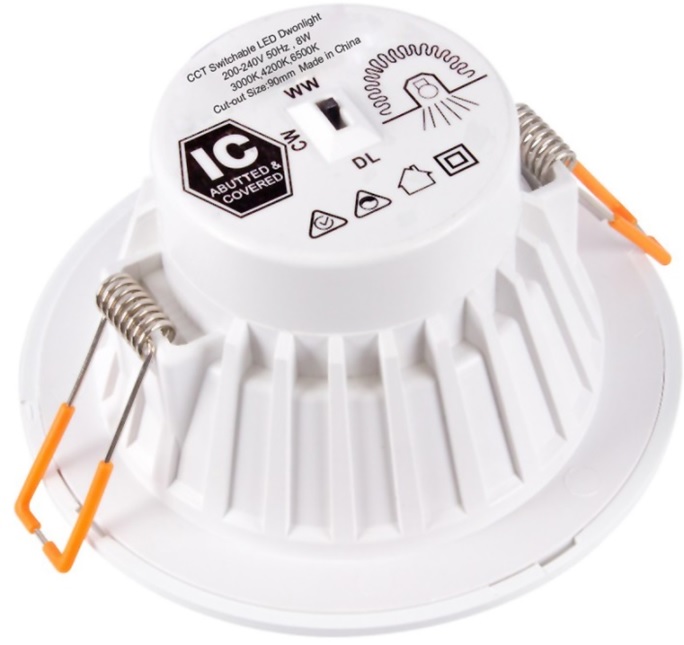

1. Slim and compact trade quality downlight with a distinctive switch to change between three popular colour temperatures It provides a remarkable light from its wide angled diffused beam.

2. Includes colour change switch and toggle feature via wall switch.

2. 6 configurations in 1.

3. Switchable between Warm White (3000K), Cool White (4200K) & Daylight (6500K).

4. Fixed head downlight.

5. Moulded plastic body.

6. High efficiency LED SMD Array. LM80 approved

7. SAA approved with integrated dimmable LED driver.

8. Long lasting up to 30,000 hours¹.

9. 1m flex & plug fitted. IP44 (front only).

10.Rated for IC Abutted and Covered usage to allow for covering with thermal insulation

11. Warranty :3 Years

Applications:

Exhibition halls, supermarkets and shopping malls, other indoor and commercial lighting, locations.

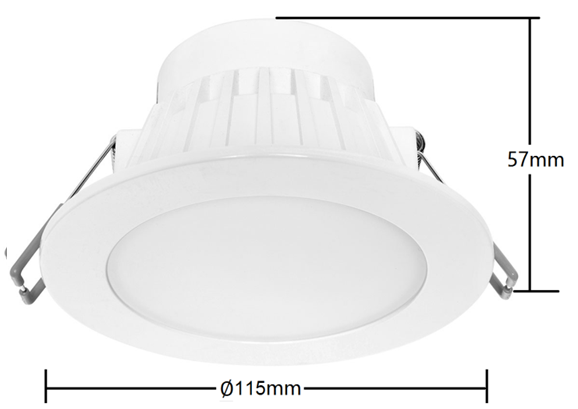

Dimension:

Packing:

Code

NW/PCS

(KGS)

Color box

(mm)

Qty/CTN

(PCS)

GW/CTN

(KGS)

Outer Carton

(mm)

DL1122

0.28

125*125*80

12.00

520*400*265
