DL1124-10W Dimmable CCT Changable LED Downlight

Item number: DL1124

Specification :

Input Voltage: AC200-240V  50/60Hz

Shape Color: White / Brushed Nickel / Sliver

Product size : Dia. 110 * 48mm

Cut out size:  92mm

Rate Power:  9W

Total power (incl.driver): 10W

Beam angle:  100°

Dimmable YES

PF 0.95

Efficacy : 95LM/W

Lumens : 820lm   (3000K)

                900lm  (4200K)

                850lm  (6500K)

LED High lumen SMD 2835 LED

CCT: 3000K / 4200K / 6500K in one Light

CRI : 82

Material Aluminium Heatsink +PMMA Diffuser

IP Rating : IP44


Description Downloads

Features:


1.  High efficiency LED SMD Array, LM-80 Approved

2.  High-grade aluminium construction with fixed design.

3.  SAA, C-Tick, CE, RoHS Approved

4.  dimmable led driver , flex & plug total 1m

5.  Fits 92mm cut outs and ideal for retro-fit applications.

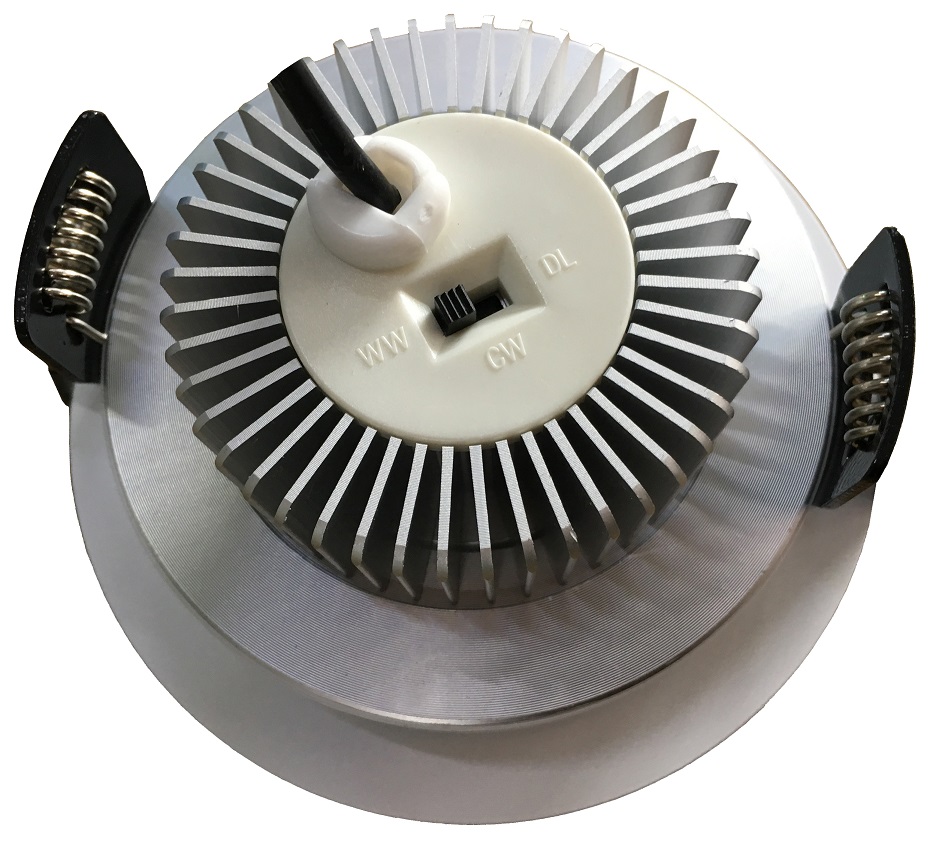

6.  LED Color changing ,3000K , 4200K , 6500K

7.  White powder coated , brushed nickel and Silver finish.

8.  It's easy to install and perfectly replacing the traditional lighting.

The products have been tested compatible with most different brand dimmers.

9.  Long lasting up to 35,000hrs*.

10. Rated for IC Abutted and Covered usage to allow for covering with thermal insulation


Applications:

Exhibition halls, supermarkets and shopping malls, other indoor and commercial lighting, locations.

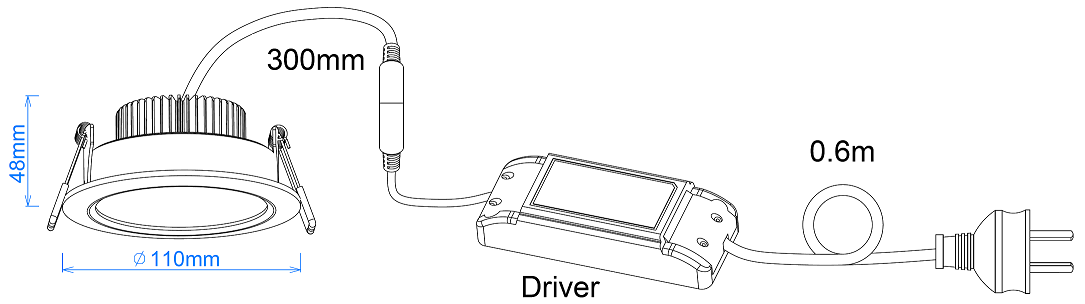

Dimension:



Packing:


Code

NW/PCS

(KG)

Color box

(mm)

Qty / CTN

(PCS)

GW/CTN

(KGS)

Outer carton

(mm)

DL1124

0.40

128*128*100

24

12.00

535*405*230
