DL1141 & DL1142 10W Dimmable CCT Changable LED Downlight

Item number: DL1141 & DL1142

Specification :

Input Voltage: AC200-240V  50/60Hz

Shape Color: White or Black

Rate Power:  9W

Total power (incl.driver): 10W

Beam angle:  50°

Dimmable : YES

PF : 0.95

Efficacy : 95LM/W

LED : High lumen COB LED

CCT: 3000K / 4200K / 6500K 3in1

CRI : 82

Material : Aluminium Heatsink +PMMA LENS

IP Rating IP20


Description Downloads

Specification:

Code

Size

(mm)

Watt

(W)

CCT

(K)

Lumens

(LM)

Cutout

(mm)

Beam

angle

CRI

PF

Dimmable

DL1141

80* H107

10W

3000K 4200K 6500K

3000K 780lm

4200K 850lm

6500K 880lm

70

50°

82

0.95

YES

DL1142

100* H107

90



Feature:


1.  CCT Switchable between Warm White (3000K), Natural White (4200K) & Cool light (6500K).
2.  Rated for IC-4 Abutted and Covered usage to allow for covering with thermal insulation.

2.  High-grade aluminium construction with gimbal design.

3.  SAA, C-Tick, CE, RoHS Approved

4.  Dimmable led driver , flex & plug total 1m

5.  Fits 70 & 90mm cut outs and ideal for retro-fit applications.

6.  LED Color changing ,3000K , 4200K , 6500K

7.  White or Black powder coated finish.

8.  It's easy to install and perfectly replacing the traditional lighting.

The products have been tested compatible with most different brand dimmers.

9.  Long lasting up to 35,000hrs*.

10. 3 years Warranty .


Applications:

Exhibition halls, supermarkets and shopping malls, other indoor and commercial lighting, locations.

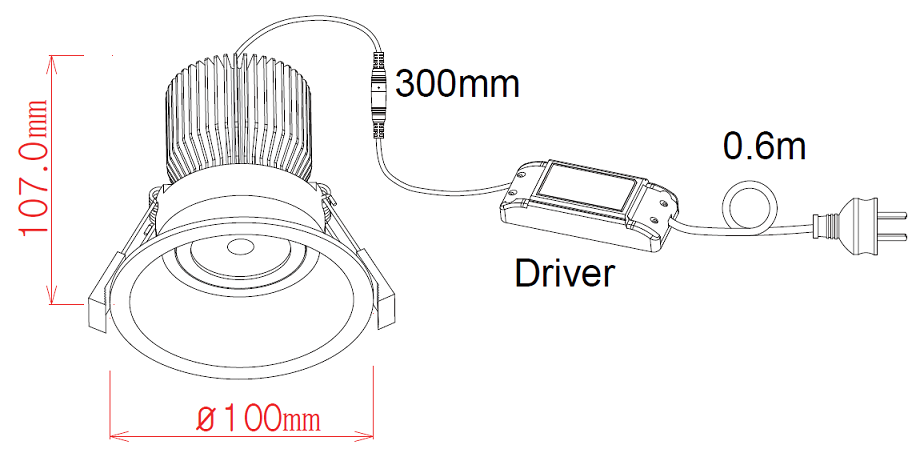

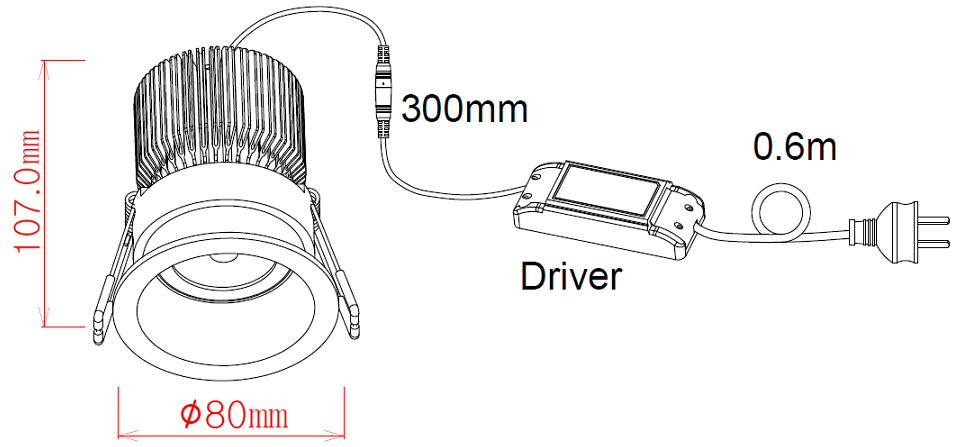

Dimension:






Packing:


Code

NW/PCS

(KG)

Color box

(mm)

Qty / CTN

(PCS)

GW/CTN

(KGS)

Outer carton

(mm)

DL1141

0.385

110*110*140

24

12.00

460*350*305

DL1142

0.40

120*110*140

24

12.00

460*380*305
