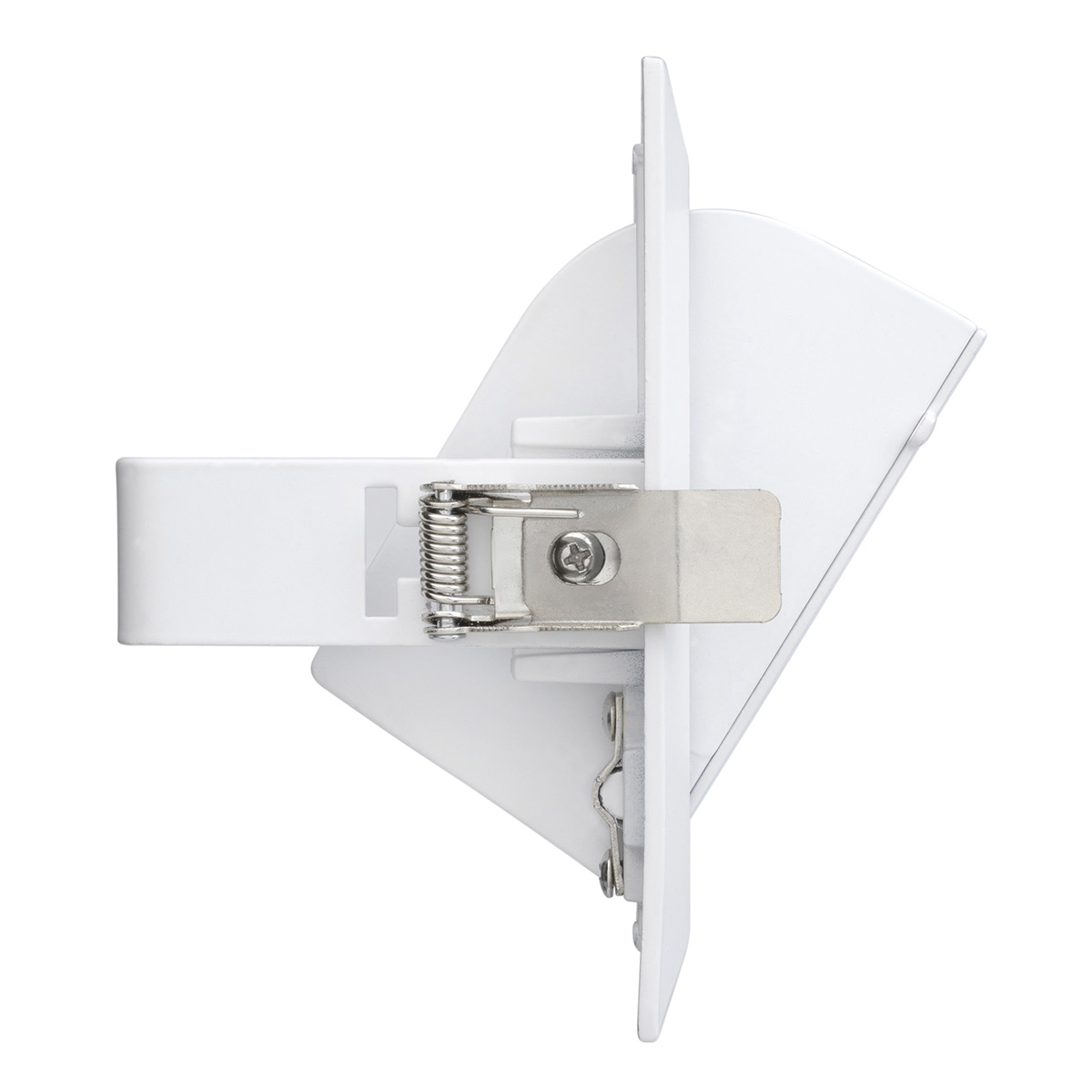

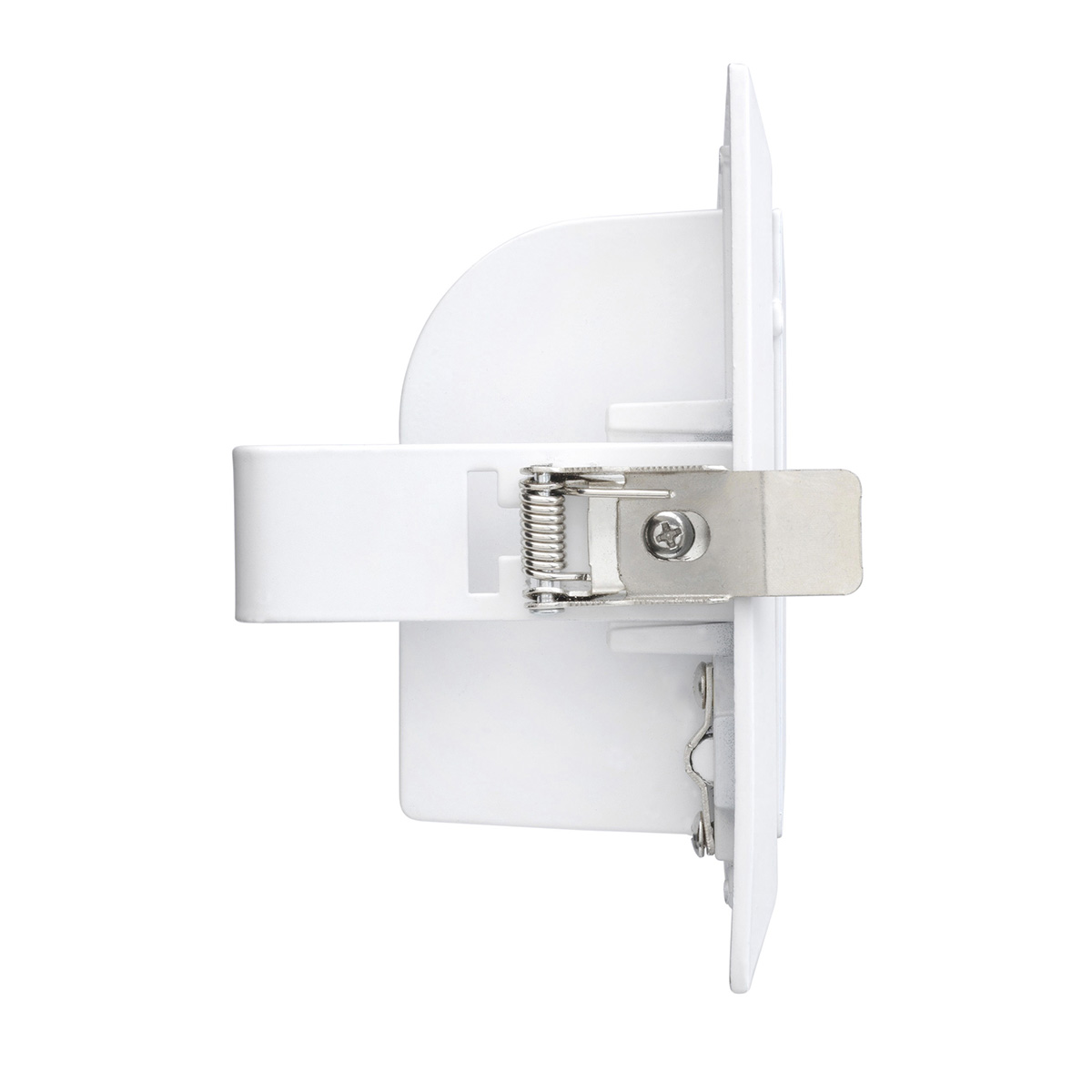

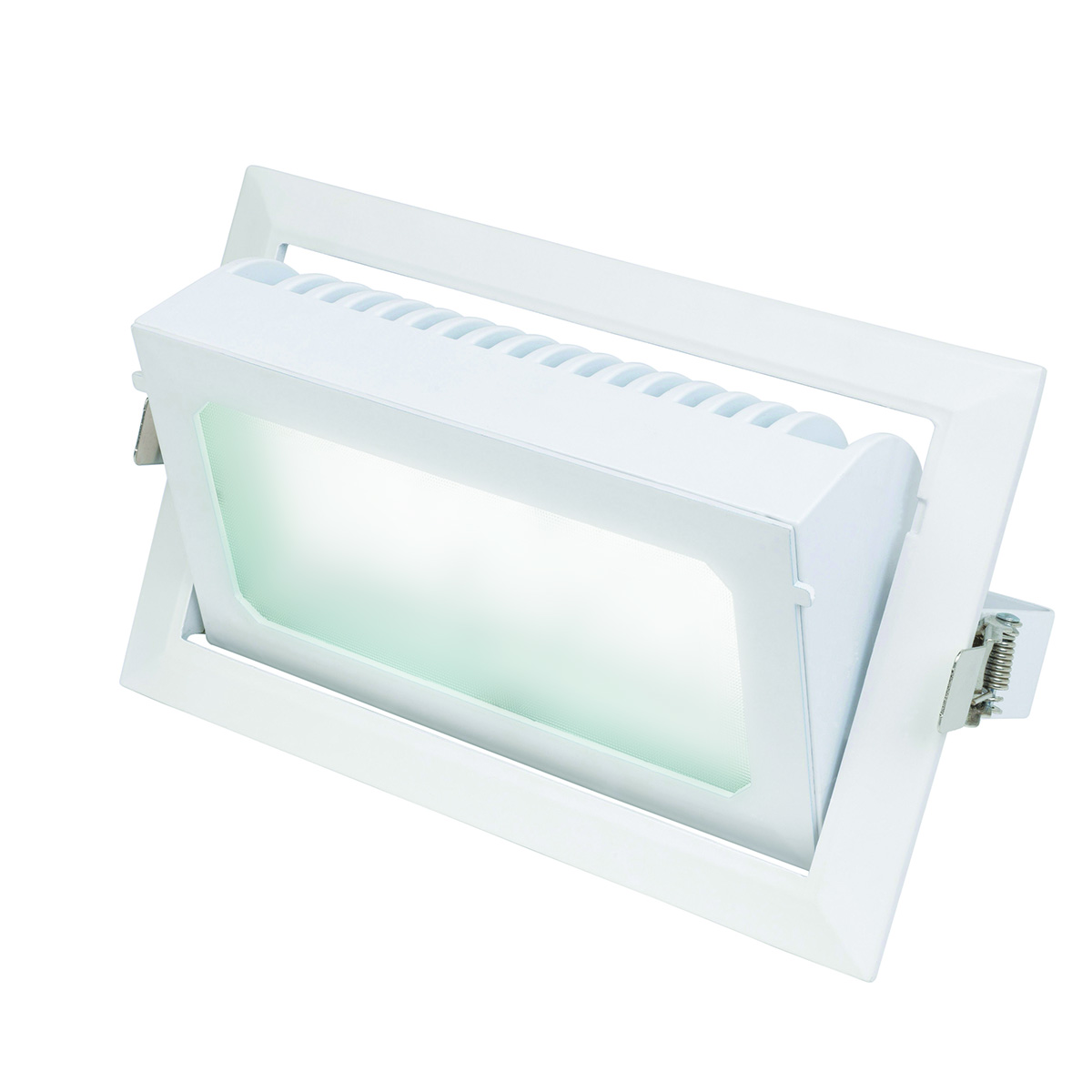

DL1144 - 35W Dimmable CCT Changable LED Shoplight

Item number: DL1144

Specification :

Input Voltage: AC200-240V  50/60Hz

Shape Color: White

Rate Power:  35W

Total power (incl.driver): 35W

Beam angle:  100°

Dimmable : YES

PF : 0.95

Efficacy : 95LM/W

LED : High lumen SMD LED

CCT: 3000K / 4000K / 5000K 3in1

CRI : 82

Material : Aluminium Heatsink +Glass diffuser

IP Rating IP20


Description Downloads

Specification:

Code

Size

(mm)

Watt

(W)

CCT & Lumens



Cutout

(mm)

Beam

angle

CRI

PF

Dimmable

DL1144

L242×W150×H90

35W

3000K  3300lm

4000K  3500lm

5000K 3400lm

 230×130

100°

82

0.95

YES



Feature:

1.  CCT Switchable between Warm White (3000K), Natural White (4000K) & Cool light (5000K). three color in one light .
2.  Rated for IC-4 Abutted and Covered usage to allow for covering with thermal insulation.

2.  High-grade aluminium construction with tempered glass Prismatic diffuser design.

3.  SAA, C-Tick, CE, RoHS Approved

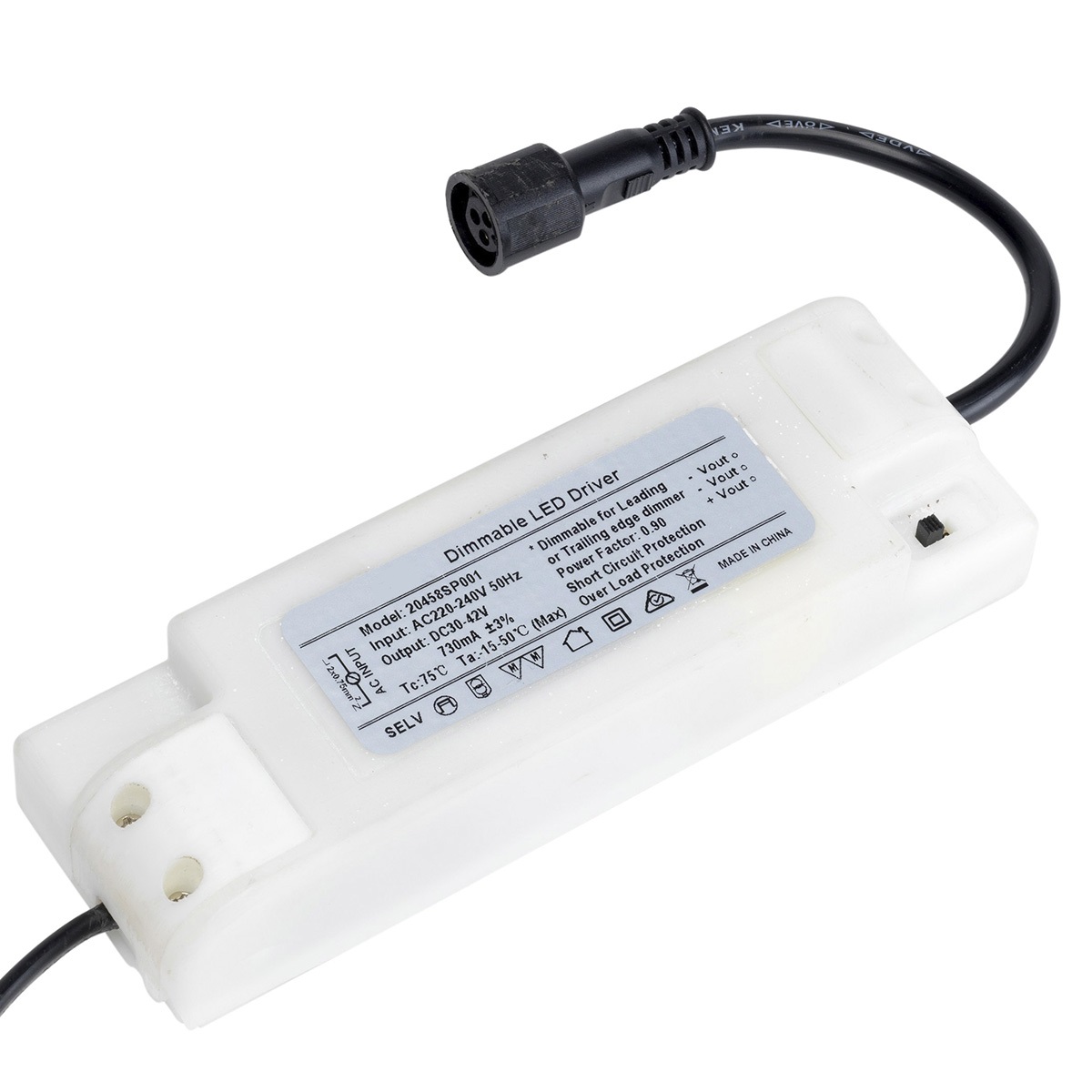

4.  Dimmable led driver , flex & plug total 1.2meter

7.  White powder coated finish.

8.  It's easy to install and perfectly replacing the traditional lighting.

9.  The products have been tested compatible with most different brand dimmers.

11. Long lasting up to 35,000hrs*.

12. Adjustable design

13. 3 years Warranty .


Applications:


• Office & school lighting: office room, meeting room, class room.

• Commercial lighting: shopping mall, super market, retailer shops.

• Other situations: hospital, laboratory, dust-free workshop.

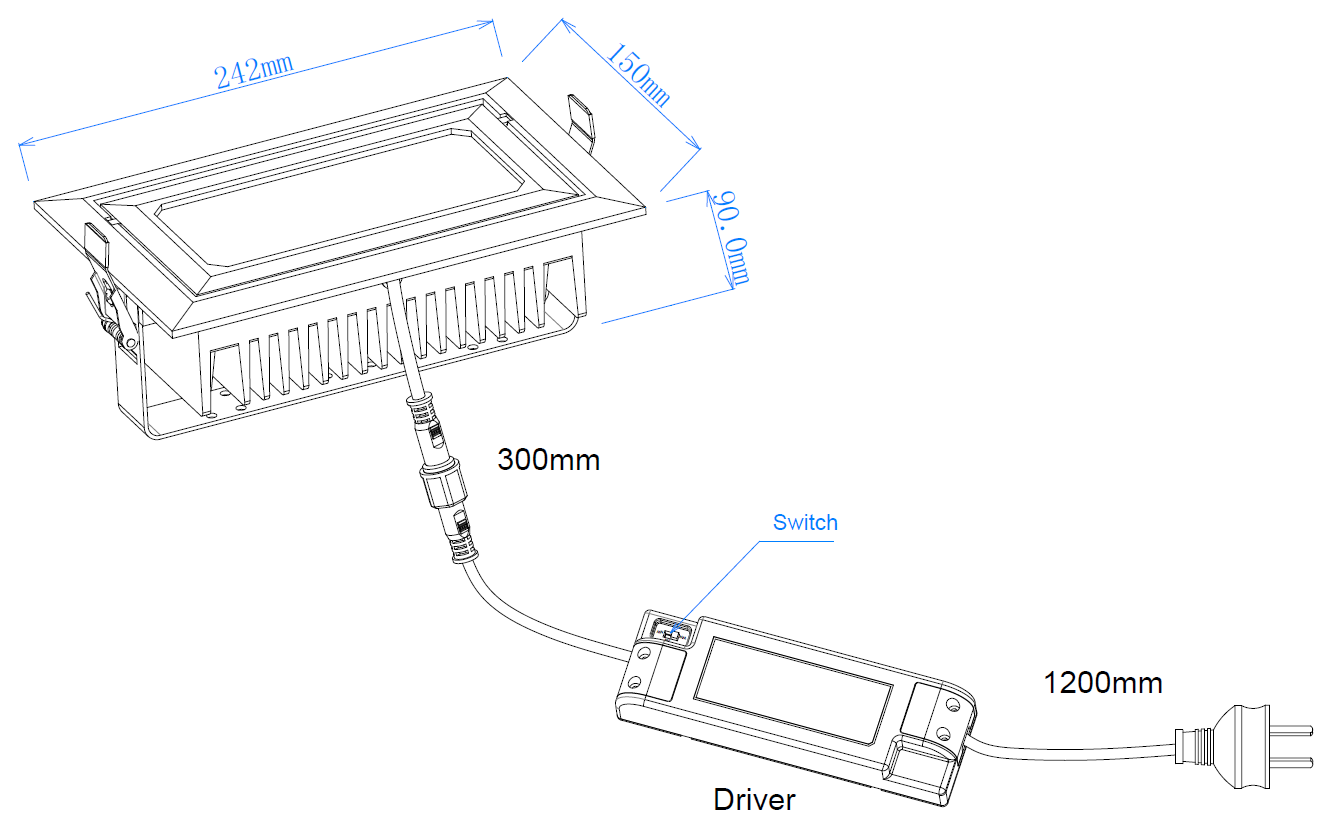

Dimension:




Packing:

Code

NW/PCS

(KG)

Color box

(mm)

Qty / CTN

(PCS)

GW/CTN

(KGS)

Outer carton

(mm)

DL1144

1.94

260*160*110

6

13.00

500×290×255
