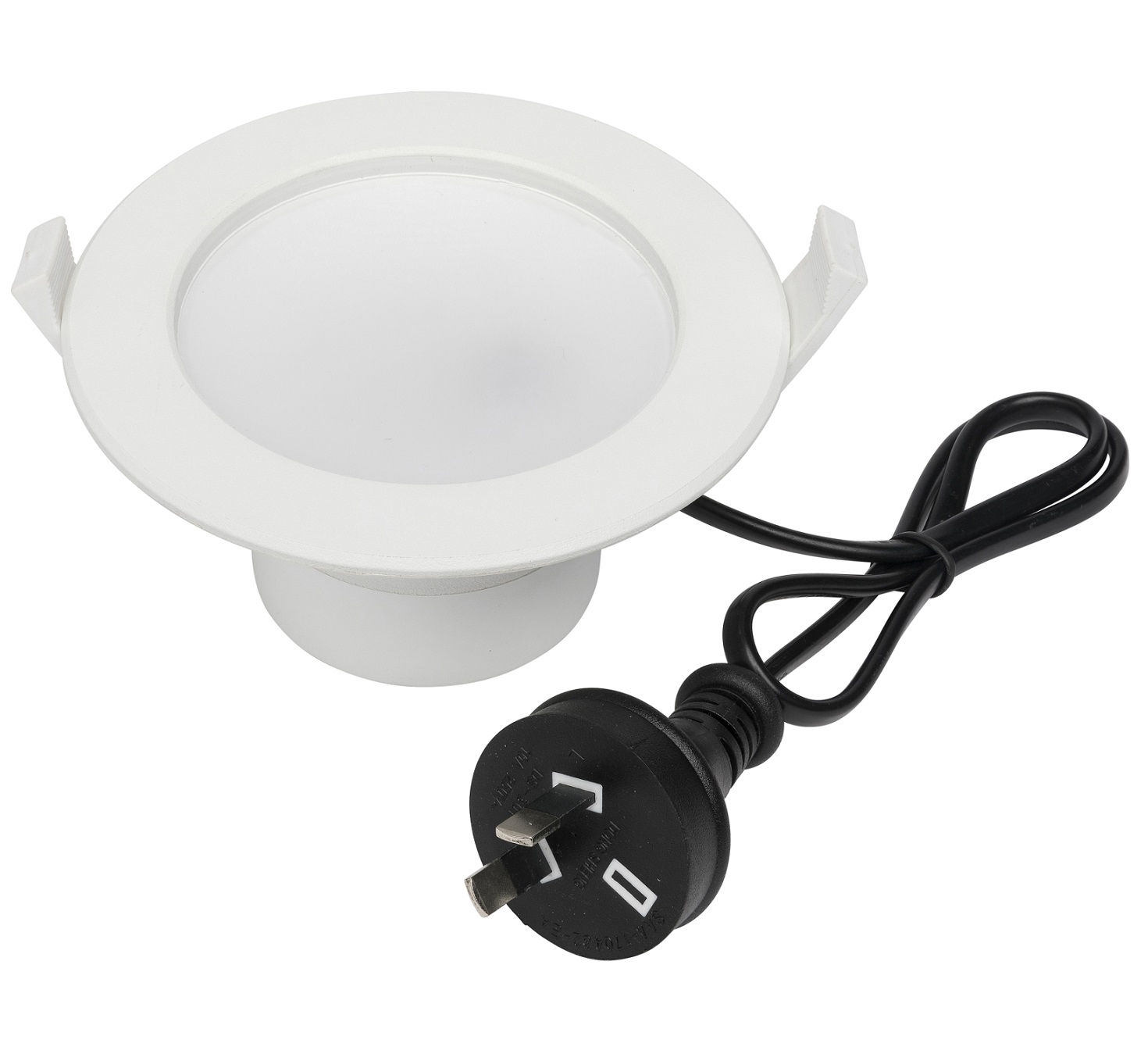

DL1143-8W Dimmable CCT Changable LED Downlight

Item number: DL1143

Specification:

Input Voltage:    AC200-240V 50/60Hz

Housing Color: White

Product size: Dia. 115 * H60mm

Cut out size: 90mm

Power: 8W

Beam angle100 degree

Dimmable: YES

PF: 0.90

Efficacy: 100LM/W

LUMENS: 3000K 800lm   4200K 900lm   6500K 850lm

LED:  SMD 2835 LED

CCT:  LED Color Switchable  3000K , 4200K , 6500K

CRI82

Material : aluminium body + PC Diffuser

IP Rating : IP44


Description Downloads

Features:

1. Slim and compact trade quality downlight with a distinctive switch to change between three popular colour temperatures  It provides a remarkable light from its wide angled diffused beam.

2. Includes colour change switch.

3. Switchable between Warm White (3000K), Cool White (4200K) & Daylight (6500K).

4. Fixed head downlight.

5. Moulded plastic body.

6. High efficiency LED SMD Array. LM80 approved

7. SAA approved with integrated dimmable LED driver.

8. Long lasting up to 30,000 hours¹.

9. 1m flex & plug fitted. IP44 (front only).

10.Rated for IC Abutted and Covered usage to allow for covering with thermal insulation

11. Warranty :3 Years


Applications:

Exhibition halls, supermarkets and shopping malls, other indoor and commercial lighting, locations.

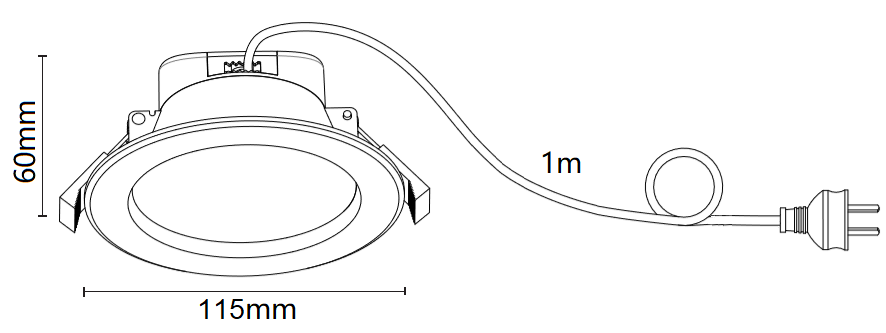

Dimension:



Packing:


Code

NW/PCS

(KGS)

Color box

(mm)

Qty/CTN

(PCS)

GW/CTN

(KGS)

Outer Carton

(mm)

DL1143

0.21

120*120*75

48

13.00

500*380*325
