BL1506 & BL1507 LED SLIMLINE Colour Temperature Changing Batten

NEW

BL1506 & BL1507 LED SLIMLINE Colour Temperature Changing Batten

Item number: BL1506 & BL1507

Product Features:

Input voltage: 200~240V AC 50/60Hz

Material： aluminium body + PC diffuser

High grade aluminium, with white powder coated finish.

Length: 600mm & 1200mm

Wattage: 20W & 40W

Power factor: 0.95

Efficacy (lm/W)：80LM/W

Lumens：WW: 3200lm, CW: 3300lm

Lamp: SMD 2835 LED

CCT changeable:3000K–4000K–6500K Tri colour in one Light

CRI：>83

Beam angle：100 degree

Dimmable：No

Life time: 35,000hrs

SAA approved LED driver and Terminal block

Ambient temp: -20 to +40°C

MAX. Ta (Safety):50 degrees Celsius

Installation：Surface Mounted

IP Rating：IP20 indoor only

Description Downloads

Specification

Code

Size (mm)

Watt

(W)

CCT (K)

Lumens(LM)

CRI

Beam angle

Dimmable

Color Changing

BL1506

600*84*36.5mm

20W

3000K 4200K 6500K

3000K 1500LM

4200K 1700LM

6500K 1600LM

100

Yes

BL1507

600*84*36.5mm

40W

3000K 3200LM

4200K 3400LM

6500K 3300LM

Festures

• Change between Warm White (3000K), Cool White (4200K) & Daylight (6500K).
• Slide switch located on the end of fitting.
• Elegant slimline profile.
• Aluminium body with polycarbonate end caps and diffuser.
• SMD LED Array.
• Long lasting up to 30,000 hours*.
• High efficient and uniform light output.
• IP20 Indoor rating.
• Mounts directly to surface, brakets not required.
• Cable entry hole located at the centre position on the rear of the fixture
• Non-dimmable

• 3 Year Warranty (Residential).

Applications

General commercial interiors, corridors, warehousing, garage and indoor storage areas.

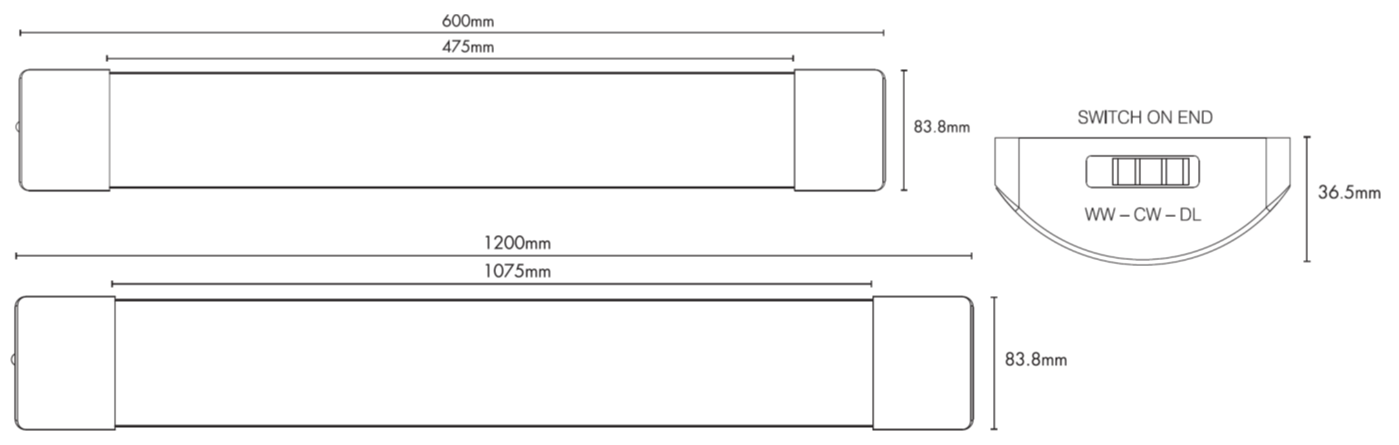

Dimension

Packing:

Code

NW/PCS

(KG)

Inner box Size
(mm)

QTY/CTN

GW/CTN

(KG)

Shipping carton

Size (mm)

BL1506

0.40

L615×W90×H45

24 PCS

13.50

L635×W290×H385

BL1507

0.78

L1215×W90×H45

12 PCS

13.50

L1235×W290×H205
