SL1203- GU10 6W LED Lamp

Item number: SL1203

Specification :

Code

SL1203

Shape Color

 Black/White/Sliver

Product size(mm

Dia 50*56mm

PowerW

6W

Input Voltage (V)

 AC110V-130V or AC200V-AC240V optional

Efficacy (lm/W)

85lm/W

LUMENS:

450lm

LAMP:

SMD LED

CCTK

2800-6500K

CRI

80

Base

GU10

PF

0.9

Beam angle

24°/36°

Material

Aluminum

 Working Temperature

-30°C ~ +50°C

Warranty

2 Years

IP Rating

IP20 Indoor only


Description Downloads

Feature:

Better heat sink performance

Excellent Heat Dissipation.

Low energy consumption.

SMD LED technology for superior light output.

Halogen feel, retrofit to 50W halogen lamp.

Free of harmful mercury, environment friendly

Long lasting up to 30,000 hours.




Application:

1. recessed lighting, shelf lighting, ceiling/wall coves
2. Cabinet and under counter lighting, office work station
3. Back lighting, step lighting, light boxes
4. Merchandising, exhibition stands

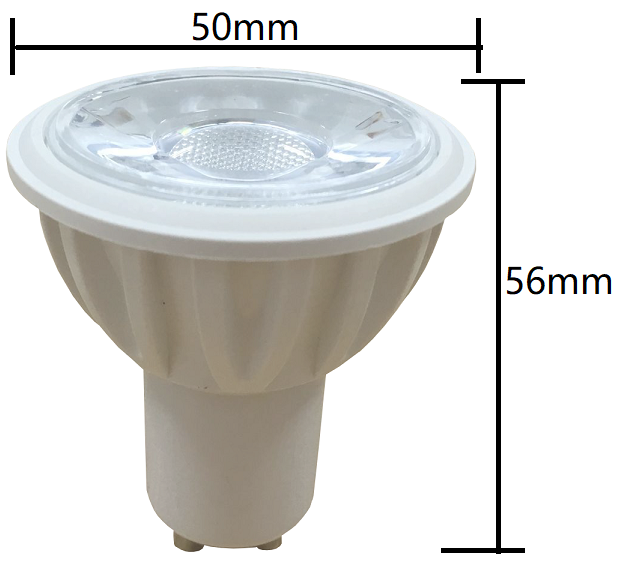

Dimension:



Packing:

Code

NW/PCS

(KGS)

Color box

(mm)

Qty/CTN

(PCS)

GW/CTN

(KGS)

Outer Carton

(mm)

SL1203

0.055

51*51*60

200

13.5

530*275*270
