CL1319 & CL1320 & CL1321 -LED Oyster Ceiling Lights_Xiamen JYG Optoelectronic Co., Ltd.

NEW

Specification:

Input Voltage: AC200-240V 50/60Hz

Shape Color: Brushed Aluminium

Rate Power: 12W & 18W & 24W

Size: Dia.325mm & Dia.395mm & Dia.460mm

Dimmable & Sensor: Available

PF : 0.95

Efficacy : 85Lumen/W

LED : SMD 2835 LED

CCT : 3000K / 4200K / 5000K / 6500K

CRI : 82

Material : Steel Plate +PMMA Diffuser

Installation: Surface mounted

Protection: ClassⅠ

IP Rating : IP20 or IP44

Description Downloads

Specification

Code	Size (mm)	Watt (W)	CCT & Lumens	CRI	PF	Protection
CL1319	∅325mm	12W	WW 900LM CW 950LM	82	0.95	Class I
CL1320	∅395mm	18W	WW 1450LM CW 1500LM
CL1321	∅460mm	24W	WW 1900LM CW 2000LM

Feature:

• Ideal for kitchens, hallways and high traffic areas

• Surface mounted LED ceiling light.
• Simple, round design.
• Provides a uniform light-output using SMD LED technology.
• IP20 / IP44

• Steel base with toughened acrylic diffuser.

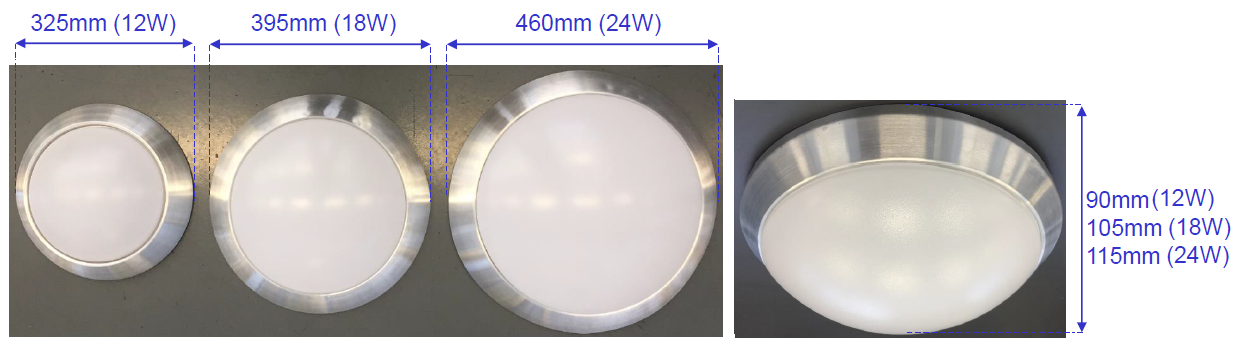

Dimension:

Packing:
