Products

FL1633-100W SMD LED Floodlight

Item number: FL1633

Specification:

Code

FL1633

Shape Color

Black /Grey

Product size (mm)

385*285*175

PowerW

100W

PF

>0.9

Input Voltage (V)

100-240V 50/60Hz

Efficacy (lm/W)

100lm/W

LUMENS:

9500LM

LAMP:

 SMD LED

CCTK

3000K / 4200K / 5000K/ 6500K

CRI

80

Material

Die-Casting Aluminium

Tempered glass

 Working Temp.

-30°C ~ +50°C

Installation

Surface mounted

IP Rating

IP65



Description Downloads

Feature:

Box style LED floodlight.

Black / Grey painted outer casing and clear tempered safety glass lens.

Hinge to direct light, Do-It-Yourself installation.

Supplied with 3-pin plug and 1m lead

Available in 10W, 20W, 30W 50W or 100W.

High intensity die-cast aluminium body, better heat dissipation structure materials,

High intensity tempered glass, it can resist the impact and friction , its luminous efficiency can reach up to 94%

IP65 waterproof Rated

Warranty : 3 years


Application:

LED floodlight widely used in stage, advertising board, Stadium, yard, garden, lawn, park, plaza, workshop, warehouse, supermarket, shopping mall, exhibition hall, gas station, highway toll station, dock .

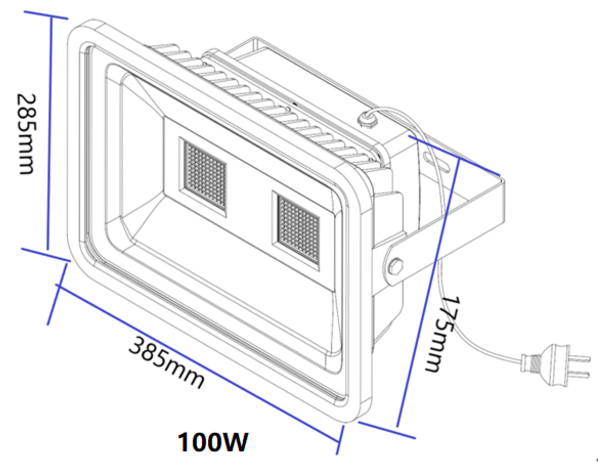

Dimension:



Packing:

Code

Net Weight

(KGS)

Color box

(mm)

Qty/CTN

(PCS)

GW/CTN

(KGS)

Outer Carton

(mm)

FL1633

5.5

420*320*215

2

13.5

440*340*460
