Specification

Code	Size (mm)	Watt (W)	CCT (K)	Lumens (LM)	Cutout (mm)	Beam angle	PF	Dimmable
DL1130	∅95* H52	7W	3000K 4000K 5000K	3000K 650lm 4000K 800lm 5000K 750lm	70	100	0.9	YES
DL1131	∅115* H60	8W		3000K 750lm 4000K 900lm 5000K 850lm	90

Features:

1. Slim and compact trade quality downlight with a distinctive switch to change between three popular colour temperatures  It provides a remarkable light from its wide angled diffused beam.

2. Includes colour change switch.

3. Switchable between Warm White (3000K), Cool White (4000K) & 4. Daylight (5000K).

5. Fixed head downlight.

6. Moulded plastic body.

7. High efficiency LED SMD Array. LM80 approved

8. SAA approved with integrated dimmable LED driver.

9. Long lasting up to 30,000 hours.

10. 0.6m flex & plug fitted. IP44 (front only).

11. Rated for IC Abutted and Covered usage to allow for covering with thermal insulation

12. Warranty :3 Years

Applications:

Exhibition halls, supermarkets and shopping malls, other indoor and commercial lighting, locations.

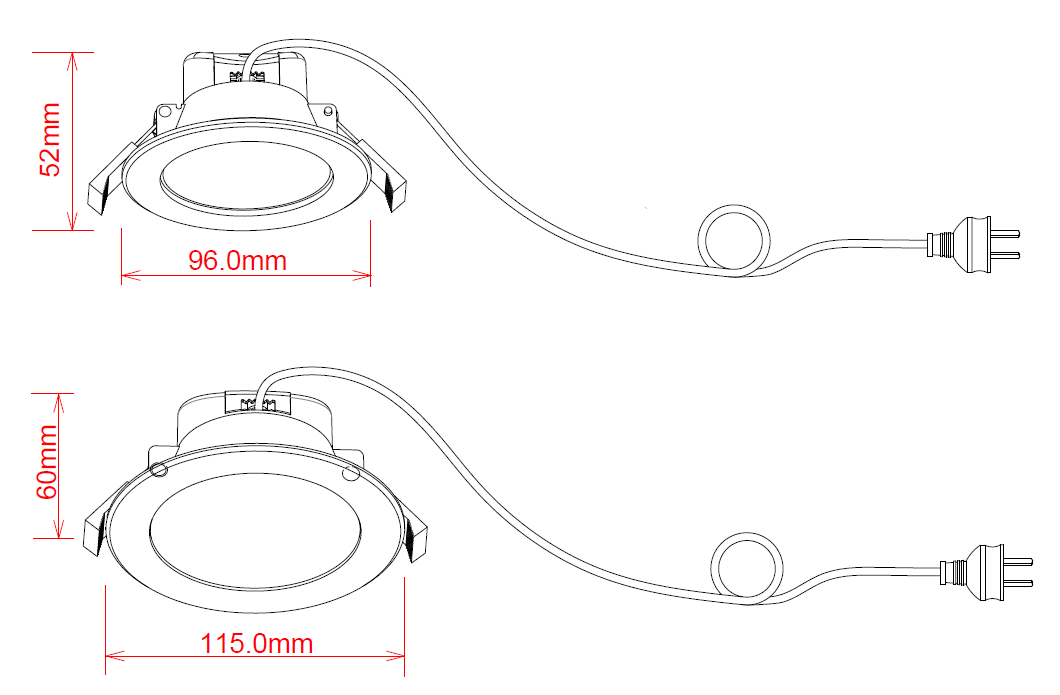

Dimension:

Packing:

Code	NW/PCS  (KG)	Color box (mm)	Qty / CTN (PCS)	GW/CTN (KGS)	Outer carton (mm)
DL1130	0.19	105*105*70	60	14.00	440*335*375
DL1131	0.21	119*119*75	48	13.00	500*335*325
