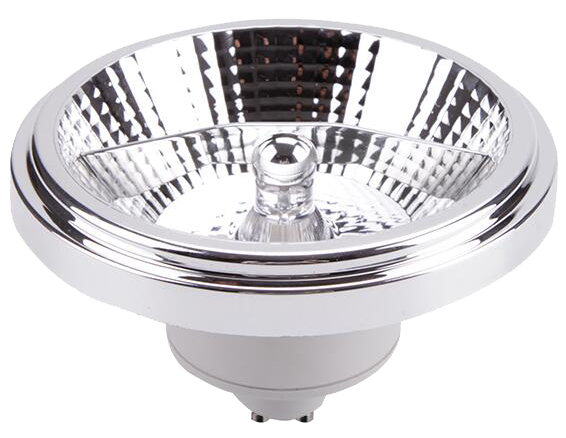

SL1207 -AR111 SMD 15W LED Lamp

Item number: SL1207

Specification :

Code

SL1209

Shape Color

White/Black

Product size(mm

Dia 111*65mm

PowerW

15W

Input Voltage (V)

AC 85-265V  50/60Hz

Efficacy (lm/W)

90lm/w

LUMENS:

1350lm

LAMP:

 SMD LED

CCTK

3000K -6500K

CRI

80

Base

G53 or GU10

Beam angle

24°/ 36°

Material

 Aluminum

 Working Temp.

-30°C ~ +50°C

Warranty

2 Years

IP Rating

IP20 Indoor only


Description Downloads

Feature:

Thermal conductive plastics + die-casting aluminium, much better heat sink performance

SMD LED technology for superior light output.

Long lasting up to 30,000 hours.

An ideal replacement for traditional lodine tungsten lamps and halide lamps


Application:

1. recessed lighting, shelf lighting, ceiling/wall coves
2. Cabinet and under counter lighting, office work station
3. Back lighting, step lighting, light boxes
4. Merchandising, exhibition stands

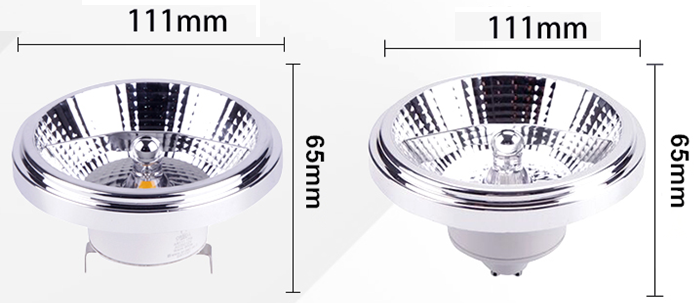

Dimension:


Packing:

Code

NW /PCS

(KGS)

Color box

(mm)

Qty/CTN

(PCS)

GW/CTN

(KGS)

Outer Carton

(mm)

SL1209

 0.16

118*118*80

 24

5.9

490*375*185
